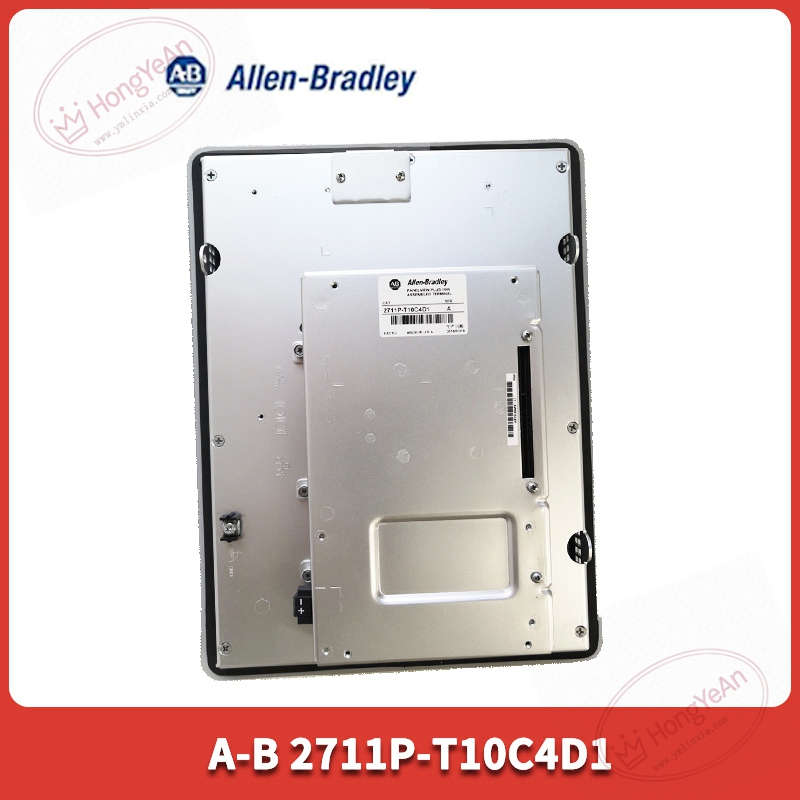

Description
Key Technical Parameters

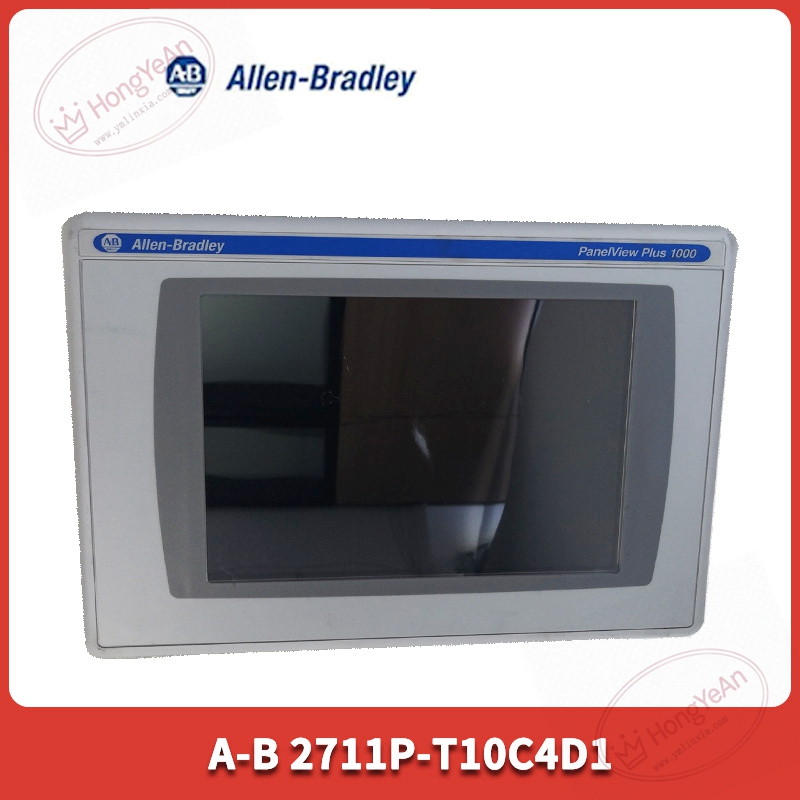

Display specification: 10.4‑inch TFT‑LCD color screen, 640×480 resolution, 18‑bit true‑color display, brightness 300cd/m²; CCFL backlight, rated service life 50000 hours at 25℃ ambient temperature, backlight support field‑replacement. Touch panel: Analog resistive touch‑screen, rated for over 1 million touch operations; supports glove‑operation and stylus touch input. Memory resource: 64 MB non‑volatile Flash memory for project storage; 64 MB RAM for runtime program execution; no built‑in SD card slot, program backup relies on USB flash disk. Communication ports: 1×10/100Mbps auto‑negotiation RJ45 Ethernet port; 1×DB9 RS‑232 serial interface; 2×USB‑A host ports for U‑disk, keyboard, mouse connection. Power requirement: 18‑32 VDC input, nominal 24VDC; typical power consumption 39W, maximum power consumption up to 70W; power‑supply terminal wiring mode. Mechanical & protection: Cabinet panel‑mount installation; front‑face protection IP66 / NEMA‑12‑13‑4X indoor‑use standard; overall dimension 248×329×55 mm, unit weight approx 2.6kg. Real‑time clock: CR2032 lithium‑battery powered RTC clock, provides accurate time‑stamp for alarm log and data‑log records, battery is user‑replaceable. Software requirement: Project development by FactoryTalk View Studio Machine Edition; compatible firmware version range requires matching with development software release. Compatible controllers: ControlLogix, CompactLogix, SLC500, MicroLogix 1100‑1500 series PLC; supports EtherNet/IP, DF1, DH‑485 multi‑protocol communication. Environmental condition: Operating temperature 0‑55℃, storage temperature‑20‑70℃; relative humidity 5‑95% non‑condensing; UL, CE certification for industrial cabinet‑installation. Important note: Split‑type modular design, consists of display module 2711P‑RDT10C and logic computing module; display and logic module can be replaced separately during maintenance; no built‑in hard disk, all data saved into Flash or external USB storage.
Practical Application Features
Rich graphic visualization function, supports real‑time tag data display, multi‑page screen switching, parameter input modification, alarm event logging, historical trend curve and multi‑group recipe storage management. Dual‑USB host ports facilitate on‑site project upload/download, alarm log export, recipe data import‑export without connecting engineering PC. Resistive touch‑screen adapts to harsh workshop environment, still operable under dust, oil‑pollution and glove‑wearing condition. Windows‑CE embedded operating system supports VNC remote desktop function, engineers can remotely view HMI screen content for equipment fault diagnosis. Serial RS‑232 port can connect serial‑printer, barcode scanner and legacy serial‑type field instruments, realize data print‑out and signal interaction. Modular split‑structure brings convenience for after‑sales maintenance: when touch screen or backlight fails, only replace display module instead of whole unit, reduce spare‑part cost. Applicable scenarios: packaging machinery, automobile assembly‑line, water‑treatment process‑control cabinet, heating‑furnace local‑operation panel, old‑generation automation‑equipment renovation‑replacement project.
Field Installation & Commissioning Guidance
Cut off 24VDC power supply before installation; open cabinet panel cut‑out strictly follow official dimension drawing, cut‑out tolerance shall comply with installation manual. Install rubber sealing gasket between HMI front‑panel and cabinet sheet‑metal, lock mounting‑clamps evenly, guarantee front‑side IP66 protection grade, prevent dust and water‑vapor intrusion. 24VDC power supply recommend using isolated industrial DC power‑supply; add fuse protection on power‑supply loop, avoid surge‑voltage damage to HMI logic module. Complete network wiring, assign static IP address for HMI, match PLC communication driver, slot number and tag access path. Download application project via Ethernet or USB flash‑disk; verify firmware consistency between HMI hardware and compiled project. Periodically replace RTC CR2032 backup‑battery within power‑off state; battery aging will result in alarm log timestamp disorder after power‑off‑and‑on. Keep HMI away from frequency converter, high‑power contactor and motor power‑cables; separate communication cable and power‑cable wiring route, guarantee cabinet grounding resistance meets industrial‑standard to restrain electromagnetic interference. After commissioning, full‑function test including touch‑response, alarm trigger, recipe reading‑writing, serial‑device communication, data exchange with PLC.
In‑Site Troubleshooting Reference
- No display / backlight off: Check 24VDC power‑supply voltage and terminal fastening status; inspect whether internal power‑supply circuit damaged; CCFL backlight tube aging is common failure for long‑time running units.
- Touch‑screen no‑response or offset: Perform touch‑calibration in HMI system menu; if calibration invalid, touch‑screen film aging and damage, need replace display module assembly.
- Fail to communicate with PLC: HMI‑PLC IP segment mismatch, wrong communication‑driver configuration, damaged network cable, switch‑port failure; verify PLC tag access permission and controller running status.
- Alarm log time stamp disorder / time lost after power‑cycle: Internal CR2032 RTC backup‑battery exhausted; replace battery under power‑off condition.
- Project download failure: Project firmware version higher than HMI supported firmware version; USB‑disk format incompatibility, recommend FAT32 format U‑disk.
- Intermittent communication drop‑out: Poor cabinet grounding, strong electromagnetic interference on‑site; optimize cable shielding processing, add signal‑isolation measures if necessary.
- Module‑split‑replacement fault: When separately replacing display module or logic module, confirm part‑number compatibility; mismatched hardware combination will trigger system startup failure.
- Flash memory overflow fault: Long‑term mass historical‑data logging leads Flash storage full; optimize log‑storage strategy, export and clear historical records regularly.
