Description
‑ Power Supply: Powered by Procontrol P13 rack back‑plane bus
‑ Power Consumption: approx 15 W

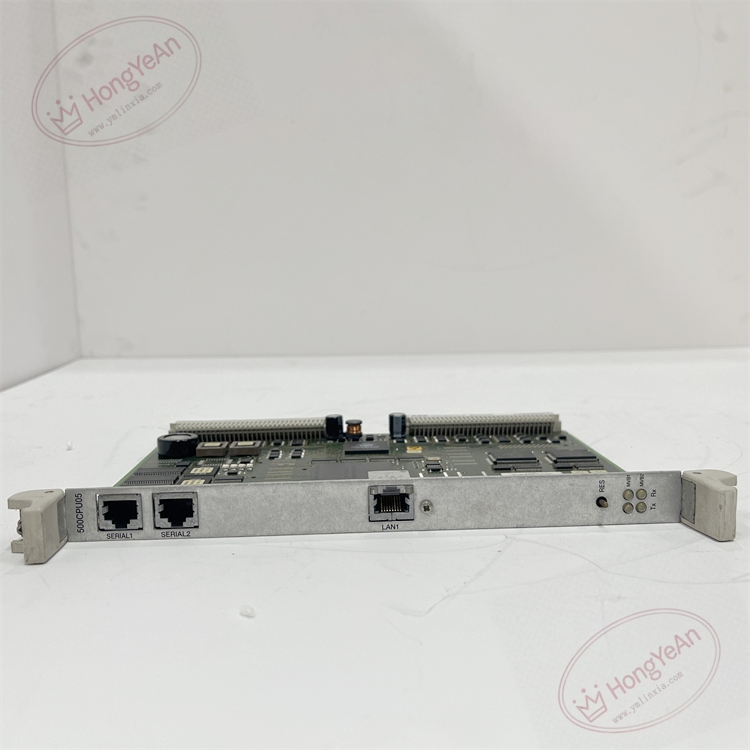

‑ Mechanical Structure: Eurocard plug‑in board for Procontrol P13 rack, metal front panel, back‑plane bus connector, front‑panel Ethernet port and service debug serial interface
‑ On‑board Resources: High‑performance 32‑bit industrial real‑time processor, program Flash memory, data RAM, real‑time clock circuit, event log storage unit, local bus controller, module self‑diagnosis unit
‑ Communication Interface: Internal dedicated local back‑plane bus for I/O and communication modules; front‑panel 10/100Mbps Ethernet interface; service serial commissioning port
‑ Galvanic Isolation: Galvanic isolation for front‑panel communication interfaces
‑ Status LED Indicators: Power indicator, Run indicator, Module Fault indicator, bus communication status, network link status LEDs
‑ Weight: approx 1.2 kg
‑ Cyclic real‑time execution of power‑plant control logic, realizes equipment interlock, sequential control and closed‑loop process regulation.
‑ Acquires analog measurement values, binary switch status and channel diagnostic information from I/O modules through rack local back‑plane bus.
‑ Generates control instructions according to logic operation results, sends commands to binary output modules to drive field actuators.
‑ Stores time‑stamped process events and fault alarm records, provides complete historical data for post‑fault analysis.
‑ Cooperates with communication interface modules to realize bidirectional data exchange with upper‑level HMI workstation and remote bay units; supports program download, offline and online parameter configuration via commissioning tool.
‑ Comprehensive module self‑diagnosis: monitors processor running status, memory integrity, rack power‑supply deviation and back‑plane bus communication fault, uploads module‑level fault alarm information.
‑ Supports dual‑CPU redundant hot‑standby running mode, realizes bumpless switch‑over when main CPU fails. 1MRB150081R1E is hardware revision variant of 500CPU05 series; firmware version must match application requirement, pin‑compatible within 500CPU05 revision family, cannot directly interchange with other series processor boards.
‑ Continuously monitors processor operation state, memory health, back‑plane bus communication and module power‑supply condition. Detected faults activate fault LED and send fault word to system diagnosis.
‑ No local numerical display; control running status, alarm events and fault codes are read via commissioning software or upper‑level HMI workstation.
‑ Module hardware failure will cause whole‑rack control logic to stop running; redundant configuration will automatically switch to standby processor without process interruption.
‑ Back‑plane connector: connects to Procontrol P13 internal local bus for data exchange with I/O modules and communication modules.
‑ Front‑panel Ethernet port: network interface for system commissioning and data interaction.
‑ Front‑panel service serial port: debug interface for on‑site program download and fault diagnosis.
‑ Mounting: Plug‑in installation inside Procontrol P13 system rack
‑ Operating Temperature: ‑20 °C ~ +60 °C
‑ Storage Temperature: −40 °C ~ +70 °C
‑ Relative Humidity: 5‑95 %RH, non‑condensing
‑ Protection Class: IP20 (cabinet internal)

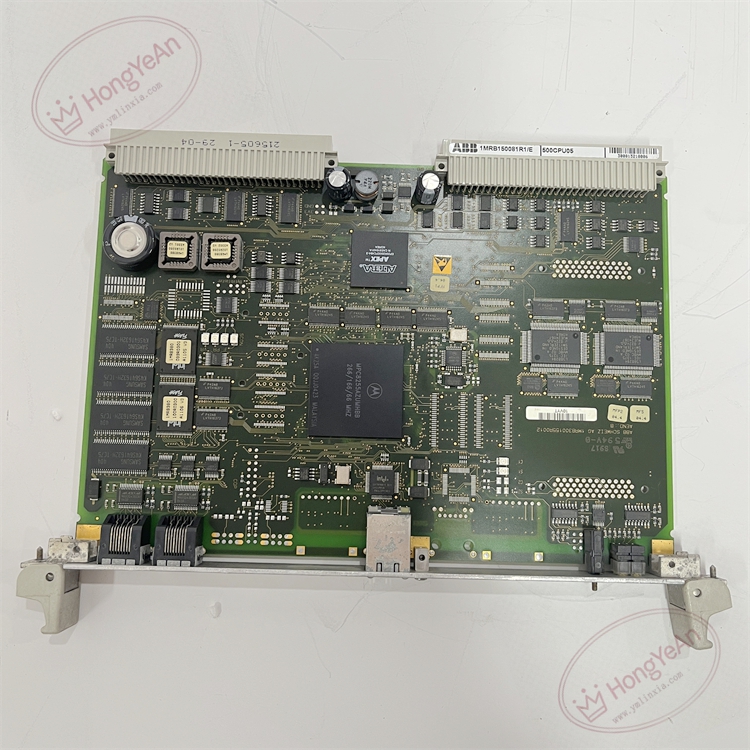

- 500CPU05 central processing unit module (1MRB150081R1E)
Complementary parts: Procontrol P13 rack and back‑plane, rack power‑supply unit, I/O modules, communication module, shielded network and service cables, Procontrol P13 commissioning software.
‑ Power off the whole rack before inserting or removing this CPU module. Network and service debugging wiring adopts shielded cables with single‑end shield grounding.
‑ For spare‑part replacement: Verify complete part number 1MRB150081R1E and confirm firmware version matching requirement. After replacement, confirm back‑plane bus identification, download control program and configuration parameters, verify logic execution, event recording and fault‑reporting function. Firmware mismatch will cause system abnormal operation.
‑ Module hardware fault will lead to suspension of rack control function; redundant configuration shall verify switch‑over function after replacement.
Generator‑transformer control cabinets of thermal / hydro power plants; ABB Procontrol P13 automation system; industrial spare‑part replacement for rack main processing unit.
- Procontrol P13 platform high‑performance rack core processor module, executes complex real‑time power‑plant control and interlock logic, supports redundant hot‑standby bumpless switch‑over.
- Equipped with Ethernet and serial service interfaces, convenient for on‑site commissioning and system interconnection.
- Built‑in time‑stamped event and alarm logging function, convenient for post‑fault tracing and analysis.
- Complete hardware self‑diagnosis mechanism, fast positioning of processor, memory and bus faults.
- Standard Eurocard rack‑mount plug‑in structure, easy installation and on‑site maintenance.
