Description
‑ Power Supply: Powered by Procontrol P13 rack back‑plane bus; field side 24 VDC auxiliary signal
‑ Power Consumption: approx 5.0 W
‑ Mechanical Structure: Eurocard plug‑in board for Procontrol P13 rack, metal front panel, back‑plane bus connector, multi‑channel external signal terminal interface
‑ On‑board Resources: signal level conversion circuit, opto‑coupler isolation unit, pulse shaping circuit, signal conditioning circuit, channel diagnosis logic, back‑plane bus controller, module self‑diagnosis circuit, optimized EMC filter components for /C revision
‑ Communication Interface: Internal dedicated local back‑plane bus for rack main processor
‑ Galvanic Isolation: Galvanic isolation between external signal channels and rack internal logic bus, isolation rating 2500 VAC
‑ Signal Types: synchronization pulse signal, inter‑rack hard‑wire interlock signal, special serial process signal
‑ Channel characteristic: multi‑group bidirectional signal channels; each channel with over‑voltage and surge suppression protection
‑ Input Filter: enhanced hardware filtering for /C hardware version
‑ Status LED Indicators: Power indicator, Module Fault indicator, per‑channel signal status LED
‑ Weight: approx 0.90 kg
‑ Realizes bidirectional signal level conversion and electrical isolation between external field special signals and rack internal logic circuit, adapts synchronization pulse and inter‑lock signals for system processing.
‑ Shapes and filters input pulse and interlock signals; /C revision strengthens filtering circuit to restrain substation strong electromagnetic interference.
‑ Transmits internal control signals from main processor to external related peripheral equipment after isolation and level conversion.
‑ Channel‑level diagnosis: monitors signal input loss, channel short‑circuit and hardware circuit abnormality, reports each channel fault information to main processor through back‑plane bus.
‑ Module self‑diagnosis monitors rack power‑supply, internal circuit running state and back‑plane bus communication, uploads module‑level fault‑alarm information.
‑ Cannot run independently; must be installed inside Procontrol P13 / REB500 rack and cooperate with CPU processing module. 1MRB200059C (/C revision) is hardware upgrade variant of 500SCM01 series; pin‑compatible with earlier 500SCM01 versions, cannot directly interchange with other series modules.
‑ Continuously monitors each signal channel status, module power‑supply and internal hardware health. Detected faults activate fault LED and send fault word to main processor.
‑ No local numerical display; channel working status and fault codes are read via commissioning software or upper‑level HMI workstation.
‑ Module hardware failure will cause loss of related special signal channels; rack main control‑logic keeps normal operation.
‑ Back‑plane connector: connects to Procontrol P13 internal local bus for data exchange with main processor.
‑ External signal terminal interface: wiring terminals for synchronization pulse, inter‑lock and special serial signal cables.
‑ Mounting: Plug‑in installation inside Procontrol P13 system rack
‑ Operating Temperature: ‑20 °C ~ +60 °C
‑ Storage Temperature: −40 °C ~ +70 °C
‑ Relative Humidity: 5‑95 %RH, non‑condensing
‑ Protection Class: IP20 (cabinet internal)

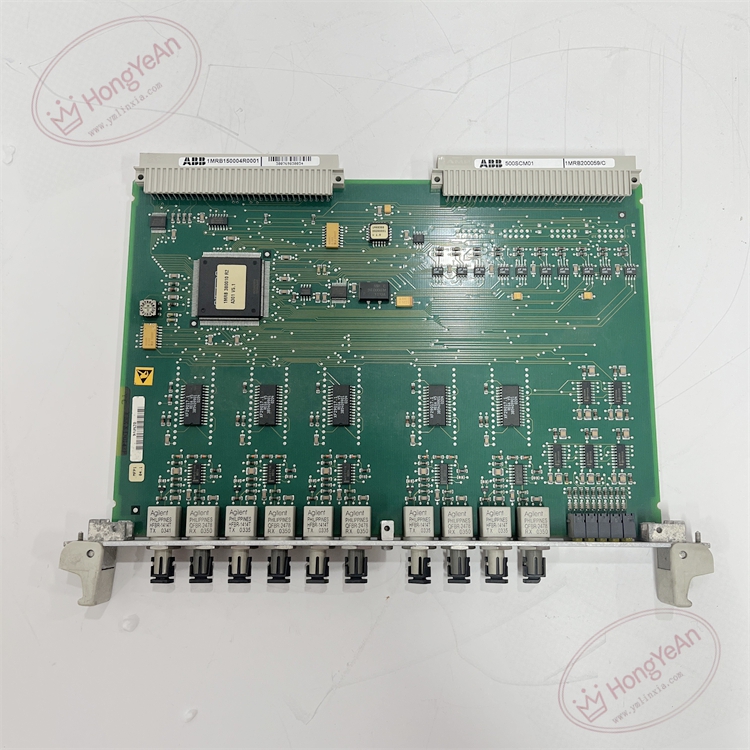

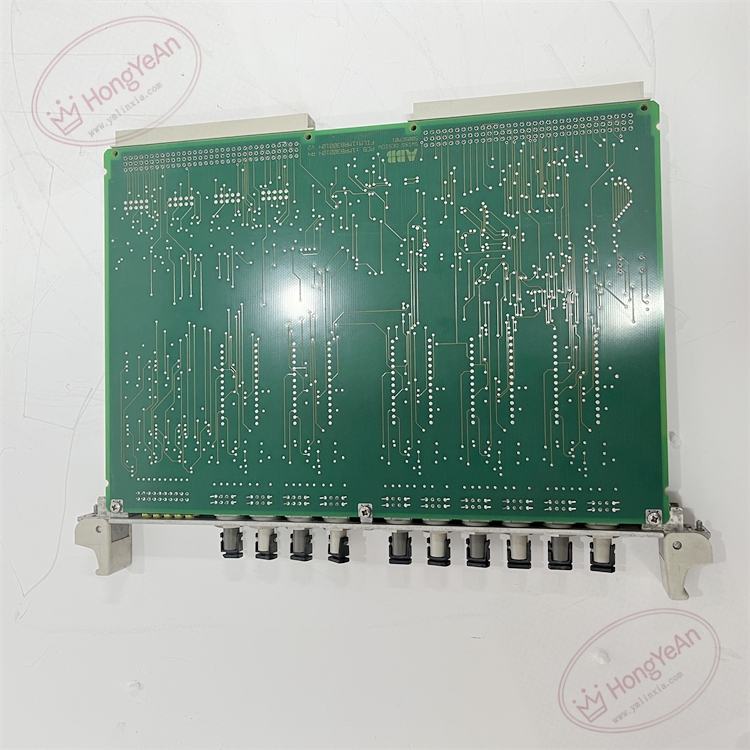

- 500SCM01 signal conversion module (1MRB200059C / 1MRB150004R0001)
Complementary parts: Procontrol P13 / REB500 rack and back‑plane, main processor module, field shielded signal cables, Procontrol P13 commissioning software.
‑ Power off the whole rack before inserting or removing this module. Field wiring adopts shielded cables with single‑end shield grounding; strictly distinguish different signal types to avoid signal mixing.
‑ For spare‑part replacement: Verify complete part number 1MRB200059C (1MRB150004R0001). After replacement, confirm back‑plane bus identification, verify signal conversion, signal transmission and channel fault‑reporting function. Pay attention to hardware revision difference for /C version.
‑ Module hardware fault will lead to failure of associated synchronization and inter‑lock signal channels.
Generator‑transformer control cabinets and bus‑bar protection cabinets of thermal / hydro power plants; ABB Procontrol P13 / REB500 automation‑protection system; industrial spare‑part replacement for special signal conversion and isolation unit.
- Procontrol P13 platform dedicated signal conversion module, /C hardware revision with enhanced EMC filter, completes level conversion, isolation and conditioning for synchronization pulse and inter‑rack interlock signals.
- Built‑in per‑channel fault diagnosis function, convenient for field fault location of special signal loops.
- Opto‑coupler galvanic isolation design for each signal channel, strong anti‑interference capability for harsh power‑plant and substation electromagnetic environment.
- Supports bidirectional signal processing, realizes signal adaptation between external peripherals and rack internal system.
- Standard Eurocard rack‑mount plug‑in structure, convenient installation and on‑site maintenance.
