Description
Display: 5.7‑inch TFT‑LCD color screen, resolution 320 × 240 pixels, 64 k colors, CCFL backlight.
Operation: 4‑wire analog resistive touch screen plus 6 physical function keys.
Memory: 128 MB flash memory, 64 MB DDR RAM; hardware real‑time clock with battery backup for recipe data preservation.
Power supply: 24 V DC (18‑32 V DC), reverse‑polarity protection, maximum power consumption 20 VA.

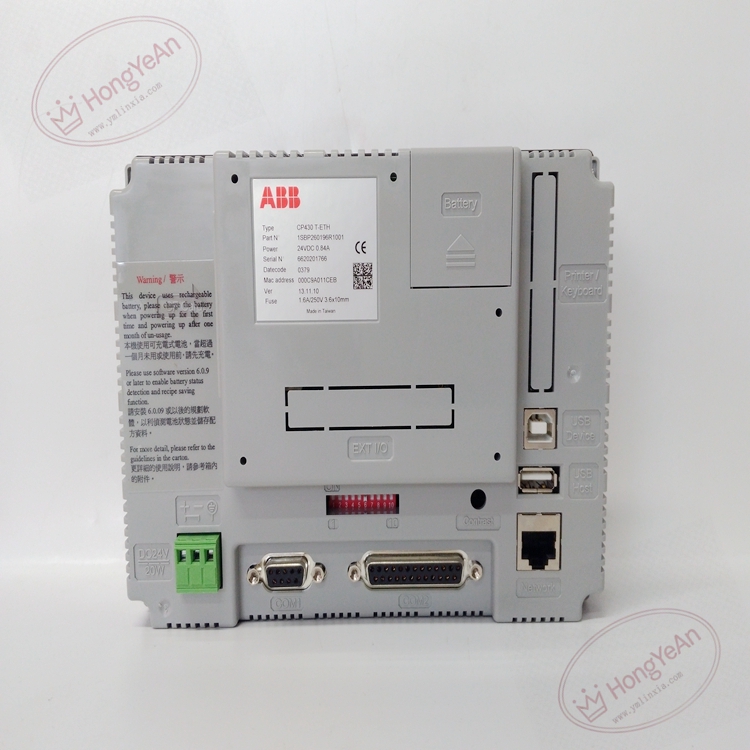

Communication interfaces: 1×10/100 Mbps RJ45 Ethernet port, 1×RS232/RS422/RS485 serial port (D‑Sub9), 1×USB host port.
Protection rating: Front panel IP65 (correct cabinet installation required), rear side IP20.
Operating temperature: 0 ℃ ~ +50 ℃; storage temperature: −20 ℃ ~ +60 ℃; humidity 10‑90 %RH non‑condensing.
Mechanical data: Cabinet cut‑out 195 mm × 145 mm, depth 60 mm, net weight 0.86 kg; certifications: CE, UL/cULus.
Real‑time process data visualization including digital values, bar graphs and indicator lamps. Multi‑level password access management, alarm event logging, historical trend display, recipe storage and download. Multi‑language support and offline simulation are available within CP400Soft configuration software. Multiple industrial communication protocols enable data exchange with PLC, drives and third‑party field devices.
Difference compared with CP405: CP430T‑ETH integrates additional physical function keys for frequent on‑site operation; CP405 is pure touch‑screen HMI without hardware function keys. Both belong to CP400 HMI series for AC500 PLC system.
Cabinet flush‑mount installation. Verify cabinet cut‑out dimension matches mechanical drawing and install front‑panel sealing gasket properly to maintain IP65 rating. Separate signal cables from high‑power power cables to minimize electromagnetic interference. After unit replacement, download the complete HMI project, verify communication connection with controller and normal process‑data display. Periodically replace internal backup lithium battery to prevent RTC clock and recipe‑data loss.
Machine tools, packaging machinery, water‑treatment stations, power‑plant auxiliary control and general factory automation for local operator monitoring and on‑site parameter adjustment.

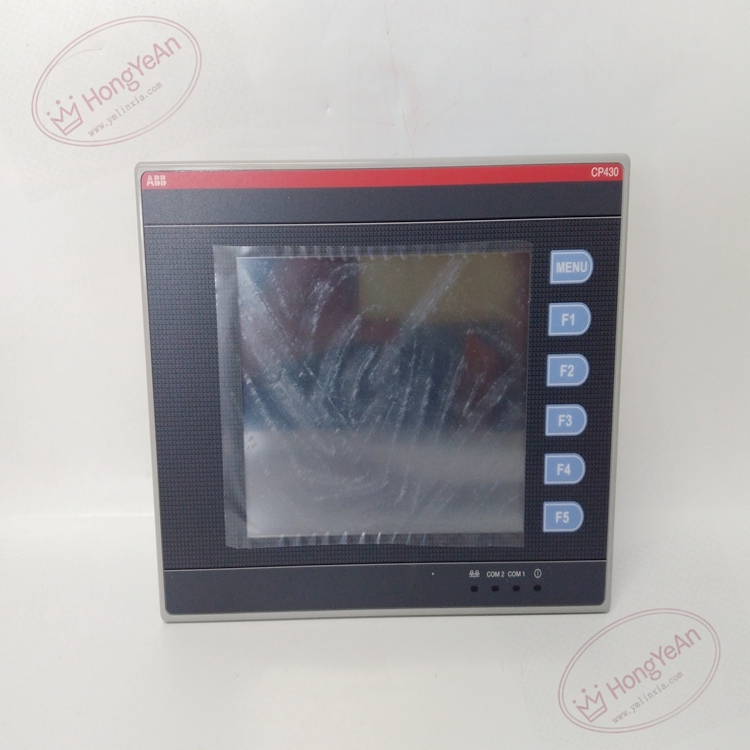

- ABB CP400‑series industrial HMI with 5.7‑inch color TFT touch screen plus dedicated physical function keys.
- Equipped with Ethernet, serial and USB interfaces for flexible device interconnection.
- Front‑panel IP65 protection, compact cabinet‑flush‑mount design for industrial cabinet environment.
- Supports alarm logging, trend curves, recipe management and multi‑level user‑access authority.
- Project developed by CP400Soft configuration software; no standalone process‑control capability.
- Industrial spare part for maintenance and retrofitting of existing ABB AC500 automation systems.
