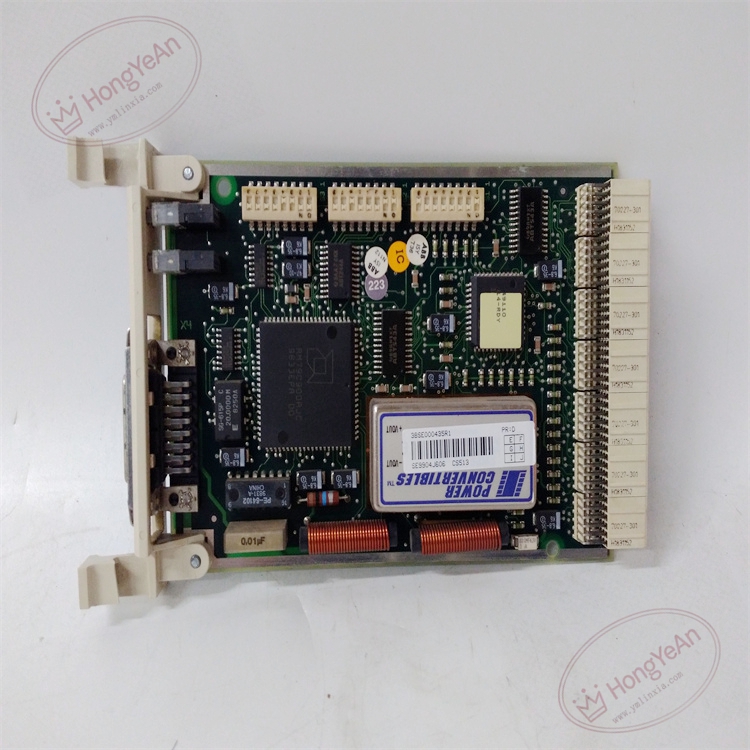

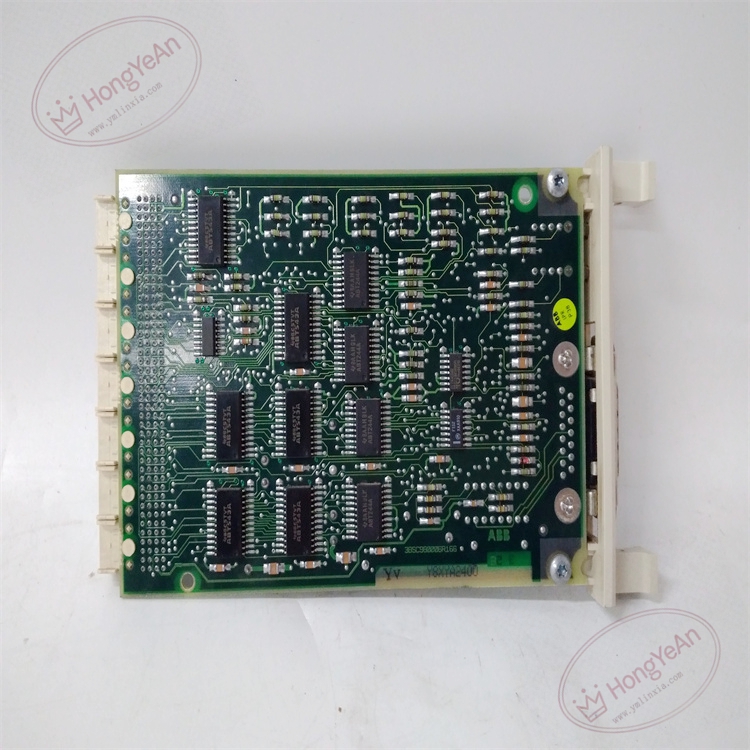

ABB CS513 3BSE000435R1 Ethernet Communication Module

Description

Hardware and Performance Specifications Auxiliary supply: Powered by rack back‑plane Power consumption: ≤8 W Communication interface: 1‑channel Ethernet 10Mbps RJ45; DB9 serial debugging port Supported protocol: MasterBus300E, IEEE802.3 LAN protocol Mounting mode: Subrack plug‑in PCB for Advant controller cabinet Protection class: IP20 Operating temperature: ‑25 ℃ ~ +70 ℃ Storage temperature: ‑40 ℃ ~ +85 ℃ Humidity: 5‑95 %RH non‑condensing EMC compliance: Comply with IEC 61000‑4 series industrial electromagnetic‑compatibility standards Dimension & weight: approx. 220 × 130 × 30 mm, weight approx. 0.44 kg Certifications: CE approval

Main Functions Realize Ethernet network access for ABB Advant OCS AC400 series controllers. Complete high‑speed data exchange between controller and operator workstation, engineering station via MasterBus300E protocol. Transmit real‑time process data, time‑stamped alarm events and fault waveform data to upper‑level monitoring system. Support online configuration download and controller diagnosis access through network. Front‑panel LED indicators display module power‑on status, LAN link status, data sending/receiving status and hardware‑fault alarm codes for on‑site inspection. Hardware self‑diagnosis detects network‑link abnormality and internal circuit faults, upload fault‑alarm information to main controller. Parameter configuration and diagnosis are completed by ABB Advant engineering software.

Installation Requirement Plug‑in installation inside Advant controller subrack. Separate network communication cables and high‑power power cables. Ensure reliable cabinet protective grounding. After module replacement, confirm full part‑number CS513 / 3BSE000435R1 matches original project configuration. Perform network link test, station communication verification and data‑transmission test. Different hardware revisions cannot be directly interchanged without configuration adaptation. Do not put into service until no hardware self‑diagnosis fault alarm exists.

Typical Application Scenarios Ethernet‑communication spare‑part for ABB Advant OCS / MasterPiece AC400‑series automation‑control systems in thermal‑power plants, hydropower plants and petrochemical industries; used for legacy DCS system maintenance and spare‑part replacement.

Key Features

1. Dedicated LAN communication module for old‑generation Advant controller, native support for MasterBus300E proprietary communication protocol.
2. Front‑panel multi‑LED status indication, convenient for on‑site commissioning and fault‑judgment.
3. Back‑plane power supply, no separate external power supply needed.
4. Plug‑in subrack‑mount structure, convenient for on‑site replacement and maintenance.
5. Strict full‑part‑number matching shall be observed during spare‑part replacement; cannot be substituted by other CS‑series communication boards without adaptation.
