Description
General Information
表格
| Item | Specification |
|---|---|
| Part Number | DDC779CE102, 3BHE027859R0102 |
| Manufacturer | ABB |
| Product Family | Procontrol P14 Power‑Plant Control System |

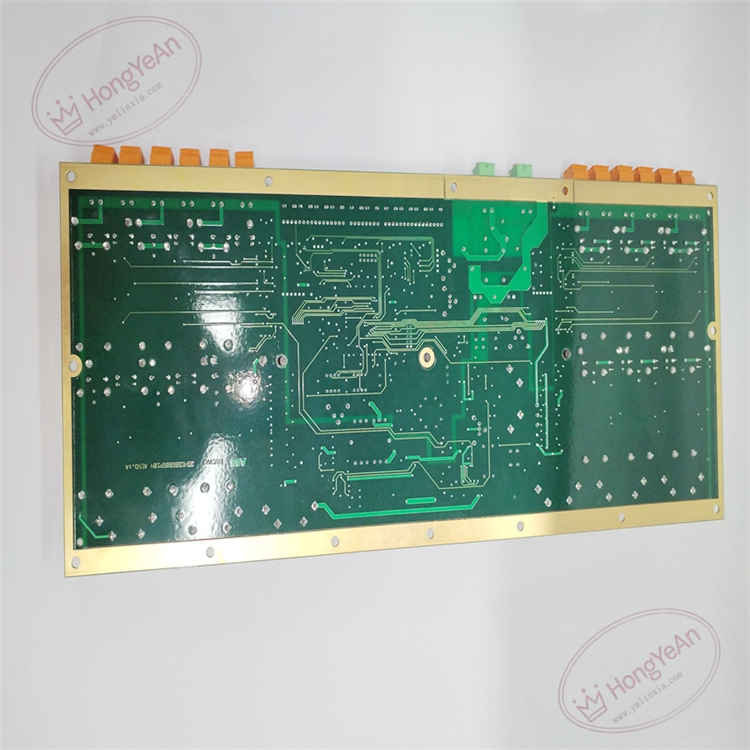

| Product Type | Galvanically‑Isolated Digital Input / Output Eurocard Module |
| Installation | Plug‑in eurocard for Procontrol P14 rack slot |
| Power Supply | 24 VDC auxiliary power supplied via rack backplane |
| Lifecycle Status | Obsolete / End‑of‑Life. OEM manufacturing discontinued. Only new‑old‑stock, refurbished and field‑pulled used maintenance spare parts available; no brand‑new factory‑built units can be ordered. |
| ESD Handling Requirement | Digital logic and I/O electronics assembly; anti‑static wrist‑strap and anti‑static workstation required for installation and replacement operations. |
Electrical & Interface Specifications
- Backplane Interface: Gold‑plated eurocard edge connector, communicates with Procontrol P14 rack internal control bus.
- Field Terminals: Screw‑type terminal blocks for field digital signal wiring.
- Channel Type: Galvanically‑isolated digital inputs and relay‑contact digital outputs.
- Input Rating: 24 VDC logic‑level signals for equipment status feedback and interlock signals.
- Output Rating: Relay contact outputs for external device actuation, alarm and interlock functions.
- Isolation: Reinforced galvanic isolation between field side and internal control logic.
- On‑Board Circuitry: Optocoupler input isolation circuit, relay drive circuit, module self‑diagnosis circuit, multi‑channel LED status indicators.
- Power Consumption: Typical 7‑9 W.
- Operation Limitation: Cannot operate standalone. Must be installed inside Procontrol P14 rack and work with matching CPU main‑board.
- Compatibility Matrix
‑ Compatible System: ABB Procontrol P14 DCS
‑ Mounting: Standard eurocard slot of P14 rack
‑ Hot‑swap: Not supported; rack power shall be fully cut off before module replacement.
Environmental Specifications
表格
| Item | Value |
|---|---|
| Operating Temperature | ‑20 °C ~ +60 °C inside control cabinet |
| Storage / Transport Temperature | ‑40 °C ~ +85 °C for long‑term spare‑part preservation |
| Relative Humidity | 5 %‑95 % RH, non‑condensing; avoid condensation to prevent circuit corrosion. |
| Compliance Standard | CE certification for industrial automation environment, complies with industrial EMC requirements. |
| Protection Class | IP00 printed‑circuit assembly; used inside protected cabinet only. |
| Dimension | Standard eurocard plug‑in form‑factor |
| Net Weight | Approx. 0.33 kg |
| Conformal Coating | Conformal‑coated variant available for corrosive and high‑humidity industrial environments. |
| Vibration Resistance | Complies with IEC 60068‑2‑6 industrial cabinet vibration criteria. |
Main Functions
- DDC779CE102 (3BHE027859R0102) is plug‑in digital input‑output eurocard module for ABB Procontrol P14 power‑plant DCS system. It realizes signal interaction between rack controller and field switching devices.
- Acquires 24 VDC field digital input signals such as equipment status feedback and interlock switch signals, transmits status data to main controller via rack backplane bus.
- Receives control commands from main CPU board, drives relay‑contact outputs to implement equipment start‑stop, interlock logic and alarm indication. Each field channel adopts galvanic isolation to suppress industrial‑site electromagnetic interference.
- Front‑panel LED indicators display channel working status and module fault information for on‑site inspection and troubleshooting. Built‑in self‑diagnosis feeds module abnormal status back to DCS host.
- Typical field failure symptoms
‑ Field input signal cannot be collected by controller
‑ Relay output no‑action after receiving control command
‑ Module communication failure with rack backplane bus
‑ Individual channel damage caused by field surge voltage
Common root causes: 24 VDC power‑supply anomaly, field over‑voltage surge damaging I/O channels, poor backplane‑connector contact, dust and moisture contamination on circuit board, component ageing.
- Pure maintenance‑oriented spare‑part component, only for repair and replacement of existing legacy Procontrol P14 installations; not suitable for new‑project engineering deployment.
Typical Applications
- Spare‑part replacement for DDC779CE102 digital I/O module (3BHE027859R0102) inside ABB Procontrol P14 rack.
- Troubleshooting scenarios: switching‑signal acquisition failure, relay output abnormal, module bus‑communication breakdown.
- Preventive‑maintenance spare‑part inventory for power‑plant sites equipped with Procontrol P14 system.
- Hardware refurbishment for decommissioned Procontrol P14 assemblies.
