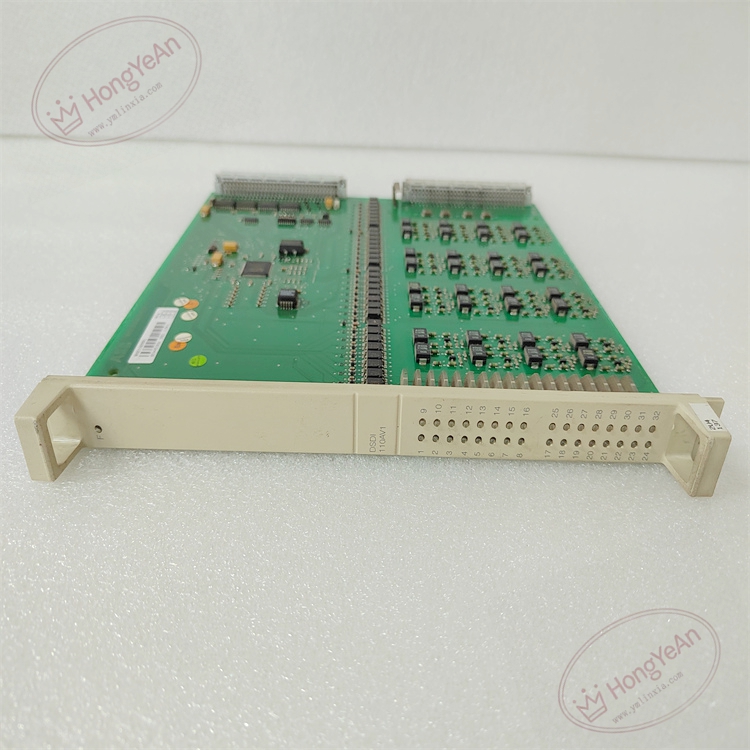

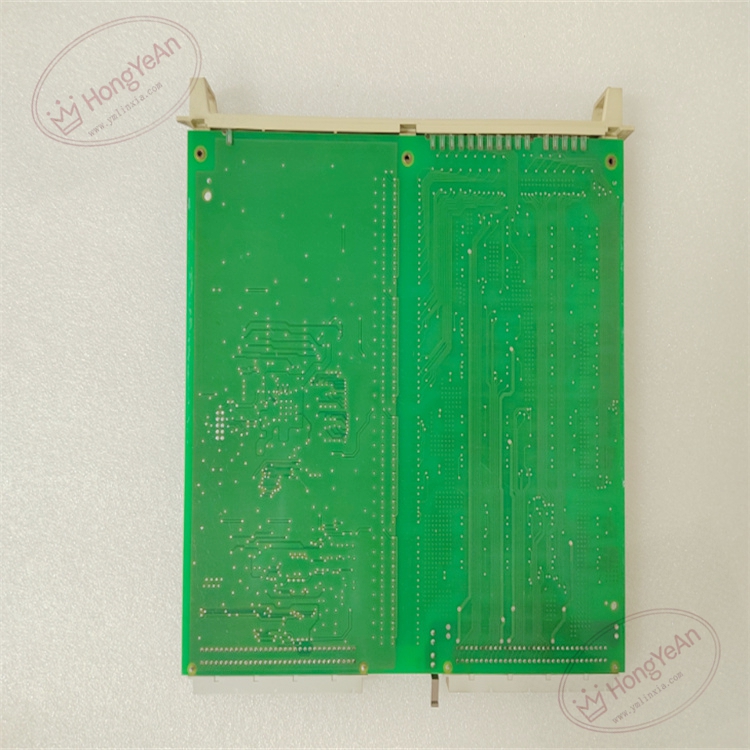

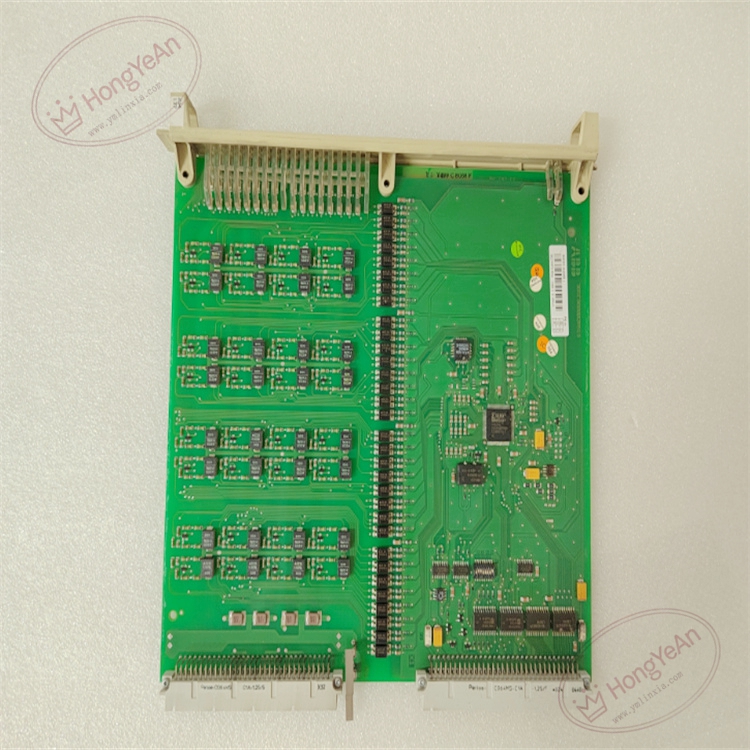

ABB DSDI110AV1 3BSE018295R1 Digital Input Module

Description

Hardware and Performance Specifications Auxiliary supply: Powered by VME rack back‑plane, no external power supply required Power consumption: ≤8 W Input channels: 32‑channel galvanic‑isolated digital input Signal level: 24 V DC Input threshold: Logic ON ≥10 V DC, Logic OFF ≤5 V DC Isolation voltage: Group‑wise galvanic isolation between field‑side and system‑bus circuit Mounting mode: VME Eurocard plug‑in board for Advant subrack Protection class: IP20 Operating temperature: −25 ℃ ~ +60 ℃ Storage temperature: −40 ℃ ~ +85 ℃ Humidity: 5‑95 %RH non‑condensing EMC compliance: Comply with IEC 61000‑4 series industrial electromagnetic‑compatibility standards Dimension & weight: approx. 328 × 237 × 30 mm, weight approx. 0.54 kg Certifications: CE approval

Main Functions Collect large‑volume binary interlock and feedback signals from field‑site equipment. Implement opto‑coupler galvanic isolation for input channels to suppress industrial‑site interference. Transfer digital status data to Advant main controller through VME back‑plane bus. Support channel‑level diagnosis for detection of channel open‑circuit and abnormal signal status. Front‑panel LED indicators display power‑on status and hardware fault alarm codes for on‑site inspection. Hardware self‑diagnosis detects internal circuit faults and reports fault information to the controller. Parameter configuration and channel debugging are completed by ABB Advant engineering software.

Installation Requirement Plug‑in installation inside Advant VME controller subrack. Digital signal cables shall adopt shielded twisted‑pair and be strictly separated from high‑power power cables. Ensure reliable cabinet protective grounding. After module replacement, confirm full part‑number DSDI110AV1 / 3BSE018295R1 matches original project configuration, download complete system configuration file. Perform channel point‑to‑point signal‑loop test and signal acquisition verification. Different hardware revisions cannot be directly interchanged without configuration adaptation. Do not put into service until no hardware self‑diagnosis fault alarm exists.

Typical Application Scenarios Digital‑input‑module spare part for ABB Advant OCS / MasterPiece AC400 automation‑control systems; widely used for interlock‑signal acquisition in thermal‑power plants, hydropower plants and petrochemical industries; applied for legacy DCS‑PLC system maintenance and spare‑part replacement.

Key Features

1. High‑density 32‑channel isolated digital input module for legacy Advant DCS systems, designed for 24 V DC field binary signals.
2. Group‑wise opto‑coupler galvanic‑isolation design, effectively resist surge and ground‑loop interference under harsh industrial environments.
3. Channel‑level fault diagnosis function, facilitating fast field‑loop fault location.
4. VME Eurocard plug‑in structure, back‑plane powered, convenient for on‑site replacement and maintenance.
5. Strict full‑part‑number matching required for spare‑part replacement.
