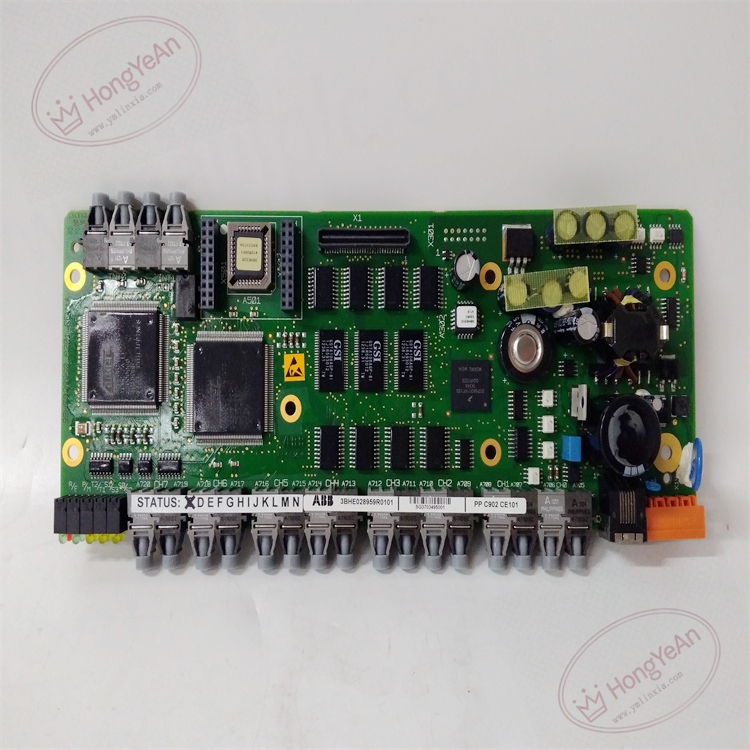

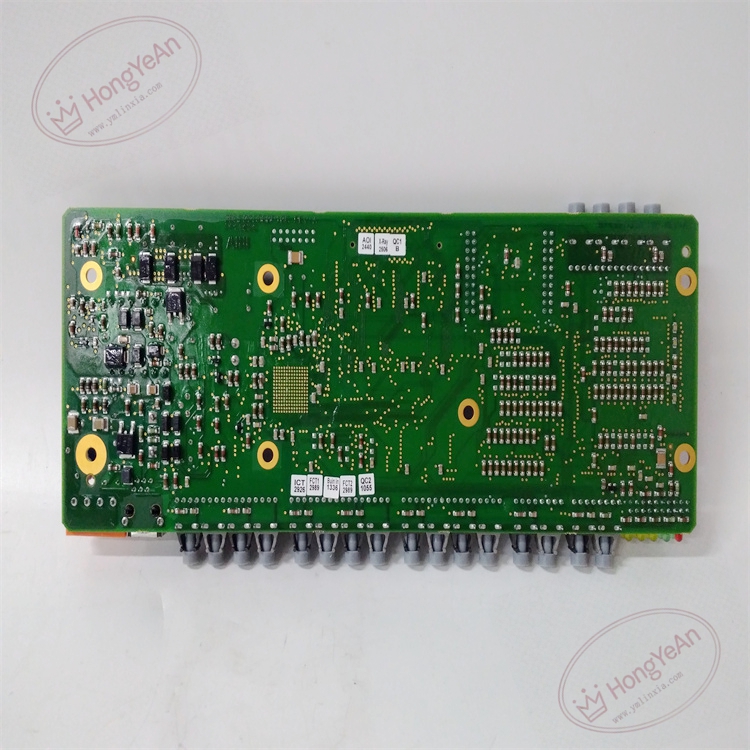

ABB PPC902CE101 3BHE028959R0101 Enhanced Power‑Electronic Processor Board

Description

Hardware & Electrical Specifications

• Model：PPC902CE101
• Part Number：3BHE028959R0101
• Module Type：Enhanced Power‑Electronic Processor Board
• On‑board Processor：32‑bit high‑speed real‑time RISC processor for power‑electronic control
• Memory：High‑speed Flash for firmware & project parameters; expanded SDRAM for real‑time data, fault snapshot and long‑time disturbance recording
• Communication：High‑speed parallel back‑plane bus; multi‑channel LC fiber‑optic transceivers for inter‑board high‑speed data transmission
• Logic power supply：24 V DC (‑15% ~ +10%)
• Max power consumption：15 W
• Galvanic isolation：≥2500 V AC between field side and internal logic circuit
• Dielectric strength：2500 V AC 1 minute
• Insulation resistance：＞100 MΩ @ 500 V DC
• On‑board protection：Reverse‑polarity protection for 24 V power input, optimized EMC filter network, hardware watchdog safety circuit, conformal coated PCB
• Revision note：CE version improves anti‑interference and computing capacity; not fully plug‑and‑play with AE version, firmware matching is mandatory for replacement.

Environmental Specifications

• Operating temperature：‑10 ℃ ~ +60 ℃
• Storage temperature：‑40 ℃ ~ +85 ℃
• Relative humidity：5%‑95% non‑condensing
• Protection degree：IP20 (installed inside excitation / MV drive cabinet)
• EMC compliance：IEC 61000‑6‑2 industrial electromagnetic immunity standard
• Certifications：CE

Mechanical Data

• Installation：Euro‑card plug‑in board, fixed by front‑panel locking handles, connected via back‑plane gold‑finger connector
• Interfaces：Back‑plane gold‑finger connector, LC fiber‑optic interfaces, debug service port
• Suitable wire cross‑section：0.75 mm²‑2.5 mm² copper cable for signal terminals
• Terminal tightening torque：0.6‑1.0 N·m
• Dimension：233 mm × 160 mm × 30 mm
• Weight：approx 0.80 kg

Main Functions

1. High‑speed real‑time control algorithm execution：Run high‑precision AVR automatic voltage‑regulation, excitation‑limiter, reactive‑power / power‑factor closed‑loop control algorithm for large synchronous‑generator excitation system; execute modulation algorithm for medium‑voltage power converter.
2. High‑precision firing‑pulse timing‑sequence generation：Output synchronized timing commands to pulse distribution driver board, realize accurate phase‑angle control for thyristor / IGCT rectifier bridge.
3. System‑wide high‑speed data coordination：Exchange sampling data, control commands and fault information with measurement board, pulse driver board and communication board via back‑plane bus and fiber‑optic links.
4. Large‑capacity parameter storage & disturbance recording：Store complex project configuration parameters locally; capture multi‑group fault snapshot, event log and long‑time disturbance‑recording waveforms for post‑fault analysis.
5. Hardware watchdog safety protection：Built‑in hardware watchdog circuit; automatically block pulse output when processor runs abnormally, avoid uncontrolled power‑electronic output.
6. Comprehensive self‑diagnosis function：Detect firmware exception, memory fault, back‑plane bus and fiber‑link communication error. Fault codes are uploaded to local HMI and remote DCS alarm system.
7. On‑board multi‑LED status indication
   • Green LED：Board 24 V auxiliary power supply normal, processor running healthy
   • Yellow LED：Back‑plane bus / fiber‑optic data transmitting / receiving active
   • Red LED：Processor fault / communication link failure / board hardware error

Installation & Wiring Requirements

1. Insert board into standard Euro‑card cabinet slot, lock front‑panel handles; ensure back‑plane gold‑finger connector fully engaged. Hot‑swap is strictly forbidden; cut off cabinet total power before disassembly and assembly.
2. Ensure cabinet ventilation and heat dissipation; avoid conductive dust and corrosive gas accumulating on PCB surface.
3. Optical fiber laying must avoid sharp bending; minimum bending radius ≥30 mm; keep fiber cables away from high‑power copper busbar to reduce interference coupling.
4. Cabinet protective grounding must strictly follow ABB AC800‑PEC / UNITROL6000 system grounding specification to guarantee anti‑interference capability.
5. Verify 24 V DC logic power supply within allowable tolerance; over‑voltage will cause permanent hardware damage.
6. After replacement, verify firmware compatibility with all peripheral boards; download matched firmware and complete project‑parameter downloading; perform closed‑loop control commissioning test.
7. Replacement note：Cannot directly substitute PPC902AE101 without firmware upgrade, whole‑system firmware version must be consistent.
