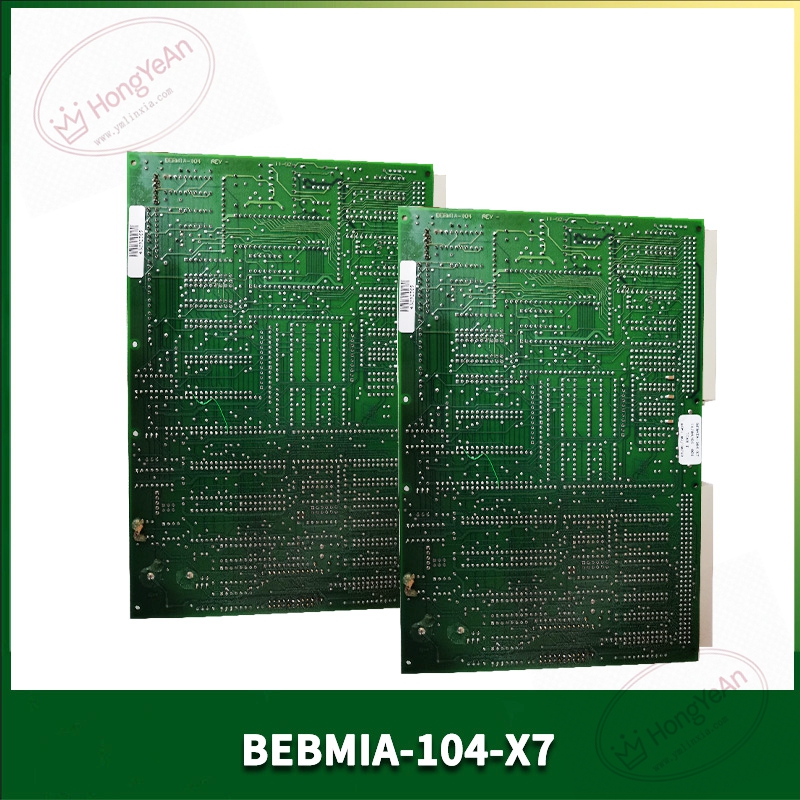

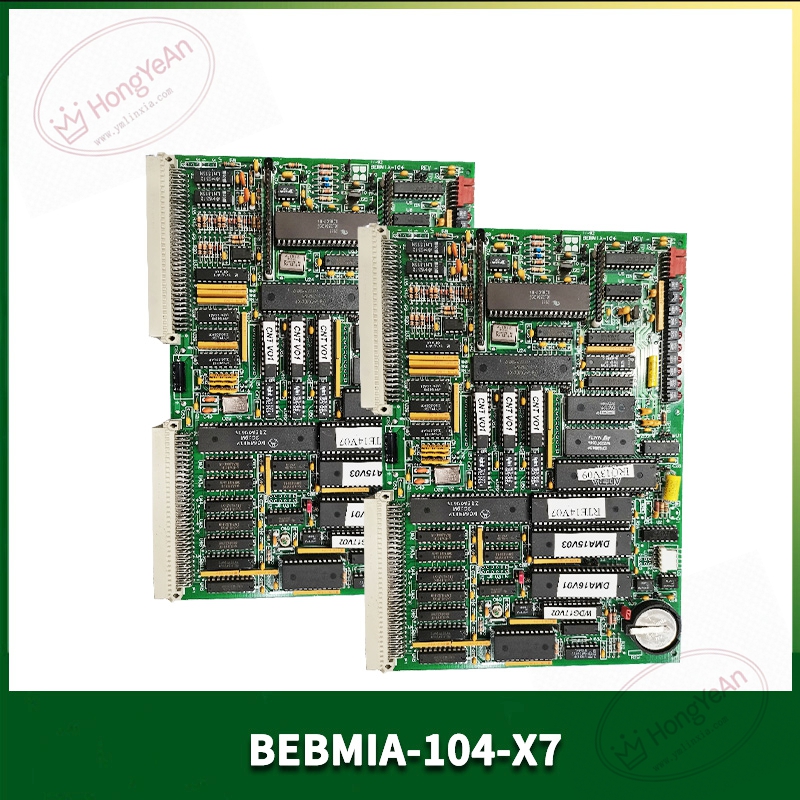

BEBMIA-104-X7 Analog Input Interface Module

Description

Core performance features

Module adopts rack‑slot installation form and obtains power from rack back‑plane bus. Multiple analog input channels can receive standard current or voltage signals from field transmitters. Built‑in channel diagnosis function, it can identify open‑circuit, short‑circuit and signal over‑range conditions of external loops. Front‑side LED lights display power‑on status, channel abnormality and internal module faults. Signal filtering function suppresses on‑site electromagnetic interference. Channel parameters can be configured through upper‑level engineering tool, including signal type definition and alarm threshold setting. Hot‑swap capable, hardware can be replaced without powering off the whole rack, field wiring remains unchanged on terminal base. Operating temperature 0‑60℃, IP20 protection grade, for cabinet‑inner installation only.

On‑site application scenarios

Commonly used in industrial automation cabinets for equipment monitoring and process control. Responsible for collecting pressure, temperature and flow signals from field transmitters. When old‑site analog acquisition hardware needs replacement, this module can reuse existing termination wiring, shorten equipment maintenance downtime. Used both for new project configuration and spare‑part stock of running automation equipment. After hardware swap, adjust channel configuration parameters according to actual instrument type.

Installation & operating notes

Even with hot‑swap support, reduce frequent plug‑pull under running status to avoid wear of connector contacts. Field analog signal wiring uses shielded cables, separate layout with high‑power cables to reduce interference. Wrong signal type setting will result in abnormal collected values. Save project configuration files before replacement. After installing new module, download parameters and carry out signal simulation test before putting into real service. Keep cabinet ventilation good. Dust accumulated on connectors will cause signal drift. Do not disassemble module housing on‑site; replace whole unit upon permanent hardware damage.

Common field phenomena & disposal thoughts

1. Module status indicator does not light after power‑on: Check rack back‑plane power supply. Re‑seat module inside slot. If power input is normal, internal hardware damage may exist.
2. Individual channel acquisition value abnormal: Inspect field wiring for open‑circuit or short‑circuit. Verify channel signal‑type configuration. Swap channel assignment for comparison test.
3. Signal value fluctuates randomly: Check shielding grounding of signal cables. Eliminate nearby strong interference sources. Monitor cabinet ambient temperature.
4. Module reports channel diagnostic alarm: Check field‑side instrument condition. Confirm signal stays within module rated input range. If external circuit is normal, internal channel damage shall be suspected.
