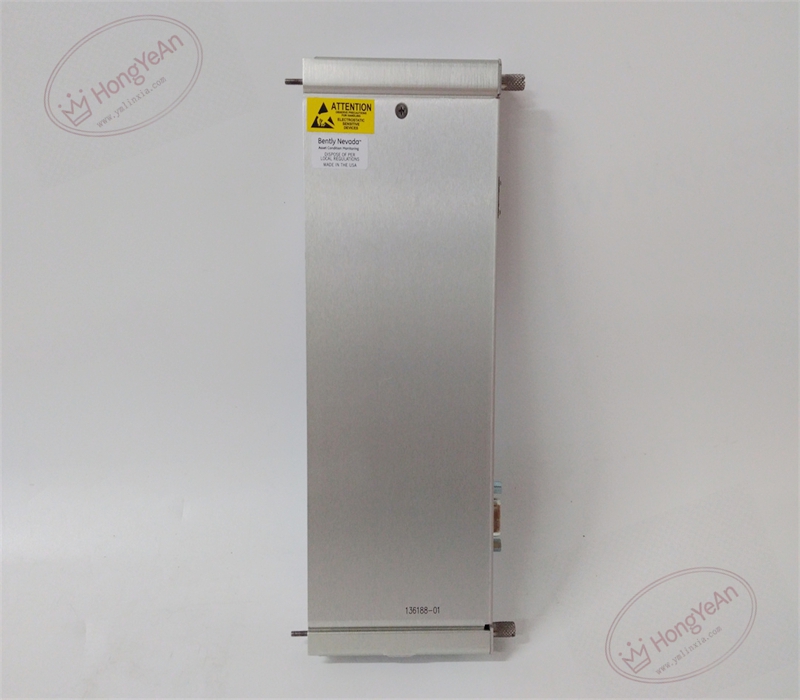

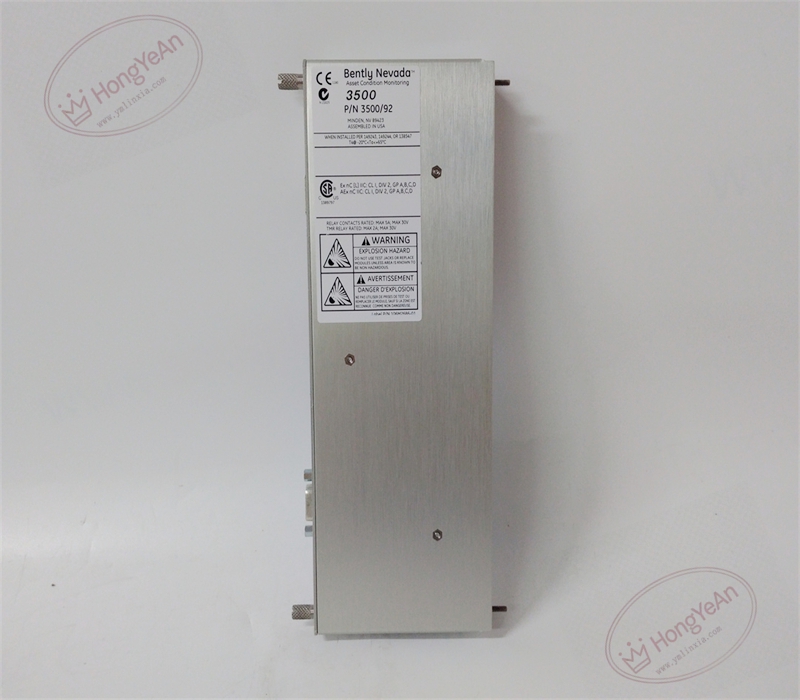

Bently 136188-01 92小卡 92 Communication Rear I/O Small Card

Description

Hardware Specifications

• Part Type: Rear communication I/O small card, dedicated mating for 3500‑92 front‑end communication gateway, independent operation invalid
• Mounting: Rear slot of 3500‑05 rack, front‑rear paired slot architecture, directly behind 3500‑92 front module

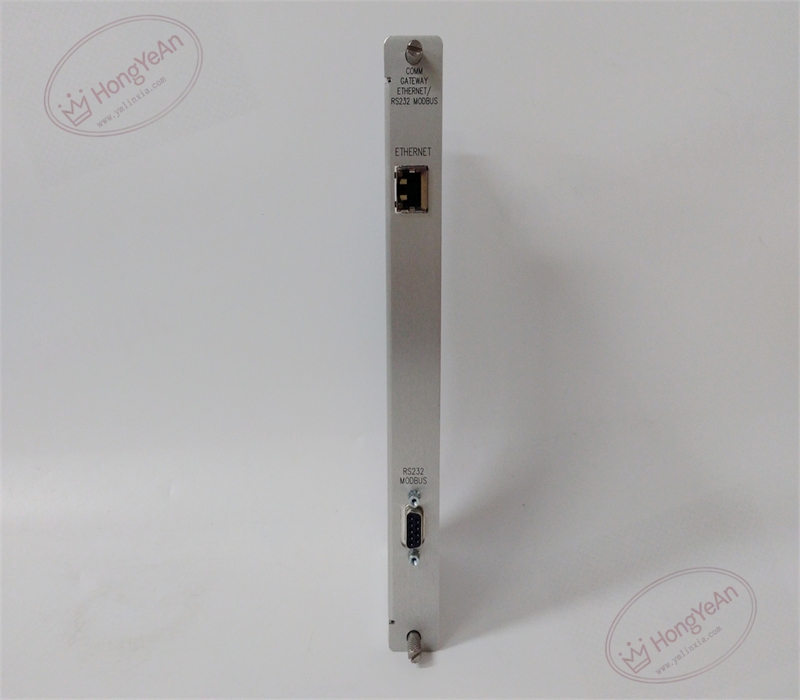

• Physical Interfaces: 10BASE‑T RJ45 Ethernet connector, DB‑9 RS232 serial port; no screw‑type field terminal blocks
• PCB: Conformal‑coated multi‑layer FR‑4 PCB, anti‑corrosion protection for harsh plant cabinet environments
• Mechanical Form: Standard 3500‑series rear small‑card footprint; net weight approx. 0.43 kg; fits standard rear full‑height slot
• Environmental Ratings: Operating temperature −30 °C ~ +65 °C; storage temperature −40 °C ~ +85 °C; relative humidity 5‑95 % non‑condensing; vibration and shock performance complies with API‑670 machinery‑protection industry standard
• Electrical Characteristics: Powered entirely via rack backplane 5 VDC supply; no local CPU, protocol chip or data‑processing circuit. All Modbus protocol stack, data packaging and command parsing are executed on the 3500‑92 front‑end gateway board. This rear card purely completes physical‑layer signal bridging between rack internal backplane traces and external copper communication cables. Not galvanically isolated between backplane side and field communication side; external surge and ESD protection relies on site‑installed shielded cable and ground‑bonding measures.
• Protocol Physical Layer Support: 10 Mbps base‑T Ethernet for Modbus‑TCP; RS232 EIA‑232‑E electrical level for Modbus‑RTU; does not support RS485 physical layer (136188‑02 variant implements RS485).

Core Functions

1. Provides physical external connector media conversion for 3500‑92 gateway communication channels. Routes rack‑internal parallel bus signals out to RJ45 and DB‑9 connectors, establishes hardware connection paths to external DCS, PLC, SCADA host, configuration laptop and data‑acquisition devices.
2. Supports bidirectional transmission of complete 3500 rack data sets: all monitor channel measured values, alarm / danger status bits, relay logic states, system event logs, module diagnostic fault codes, rack configuration metadata. Data can be polled by upper‑level host via Modbus‑TCP over Ethernet or Modbus‑RTU over RS232 serial link.
3. Accepts remote configuration and firmware‑download commands sent from host configuration software through Ethernet interface; forwards configuration commands to front‑end 3500‑92 module and further distributes across the rack backplane to target monitor modules for parameter modification and firmware flashing operations.
4. No local decision‑making or diagnostic logic. All communication error detection, frame‑error counting, timeout judgment and link‑status identification are processed by the front‑end 3500‑92 gateway module. Communication link health status is indicated via OK / TX‑RX LED indicators located on the front faceplate of 3500‑92 front‑end module. Fault events will be reported to the 3500 system event log for operator review.
5. Applied in steam‑turbine, gas‑turbine and centrifugal‑compressor TSI protection systems. Realizes data interconnection between 3500 machinery‑protection platform and plant central control system, enables remote monitoring of machinery health conditions without manual local rack inspection. Supports point‑to‑point direct connection and local short‑distance serial multi‑drop RS232 topology.

Installation Requirements

1. Strict one‑to‑one slot pairing requirement: this rear small card must be inserted in the rear slot directly behind a 3500‑92 front‑end gateway module. Mismatched front‑rear part numbers or misaligned slot positions will lead to total loss of Ethernet channel, total loss of RS232 serial channel, or incomplete data mapping on Modbus register tables.
2. Power‑off operation rule for rear‑card replacement: although front‑end modules support hot‑swap function, rear‑side I/O small‑card insertion / extraction must be performed with the entire 3500 rack powered down. Live‑swap of rear card may generate backplane bus transient noise, trigger temporary communication frame loss, cause random Modbus register value jumping, and potentially induce misinterpreted alarm status in upper‑level DCS system.
3. Cabling specification enforcement: use fully shielded industrial‑grade twisted‑pair cable for 10BASE‑T Ethernet connection; adopt shielded RS232 serial cable with metal‑shell DB‑9 connector for serial wiring. Cable shielding layers shall implement single‑end grounding at control‑system cabinet ground bar. Communication cables must be physically separated from high‑voltage AC power cables, large‑current motor cables and relay‑trip circuit wiring to suppress electromagnetic interference and avoid intermittent communication drop‑out issues. Maximum RS232 cable length shall follow EIA‑232‑E specification limits for baud‑rate selection.
4. Cabinet environmental control: maintain proper cabinet forced‑air ventilation and temperature control. Prevent oil mist, corrosive gas, conductive dust and moisture condensation inside cabinet space. Contamination accumulation on PCB traces and connector pins will produce high‑resistance contact points and degrade long‑term communication stability.
5. Pre‑installation visual inspection: carefully inspect backplane edge‑connector pins before inserting the small card. Check for bent pins, mechanical deformation, corrosion, oil contamination and foreign‑object debris. Damaged or contaminated backplane contacts will result in partial‑bit data corruption, sporadic communication time‑out failures that are difficult to troubleshoot.
6. Part‑number cross‑version distinction: 136188‑01 is Ethernet plus RS232 variant; 136188‑02 provides Ethernet plus RS485. These two variants are not interchangeable for field‑wiring purposes; mixing‑up will cause complete serial‑port communication failure.

Common Failure Modes

‑ Connector pin oxidation, metal‑shell corrosion or crimp degradation: intermittent communication drop‑out, random Modbus register read errors, unstable data refresh cycle, occasional frame timeout alarms reported by upper‑level host. ‑ Backplane edge‑connector pin mechanical damage, bent or corroded contacts: partial‑bit data corruption, either Ethernet or RS232 channel fully dead, sporadic non‑reproducible communication faults which only occur under cabinet vibration conditions. ‑ Conformal‑coating scratch, PCB trace corrosion induced by oil mist or chemical vapor: individual signal trace open‑circuit or short‑circuit inside PCB substrate, resulting in permanent loss of one communication physical channel. ‑ ESD electrical overstress damage during field handling: internal PCB signal‑trace micro‑fracture or subtle copper‑layer damage without obvious exterior physical damage; manifests as unstable communication performance after thermal temperature cycling inside cabinet. ‑ Mechanical damage caused by improper insertion force: edge‑connector pin offset, internal fine‑trace cracking, communication functionality fails after cabinet vibration events.
