Bently 190065A-00-02-01-01-01 General‑Purpose Equipment Monitor (With Local Display Support, AC Power, Modbus‑RTU)

Description

Hardware Specifications

• Part Type: Stand‑alone general‑purpose rotating‑machinery monitor, metal DIN‑rail housing, not 3500‑05 rack slot hardware

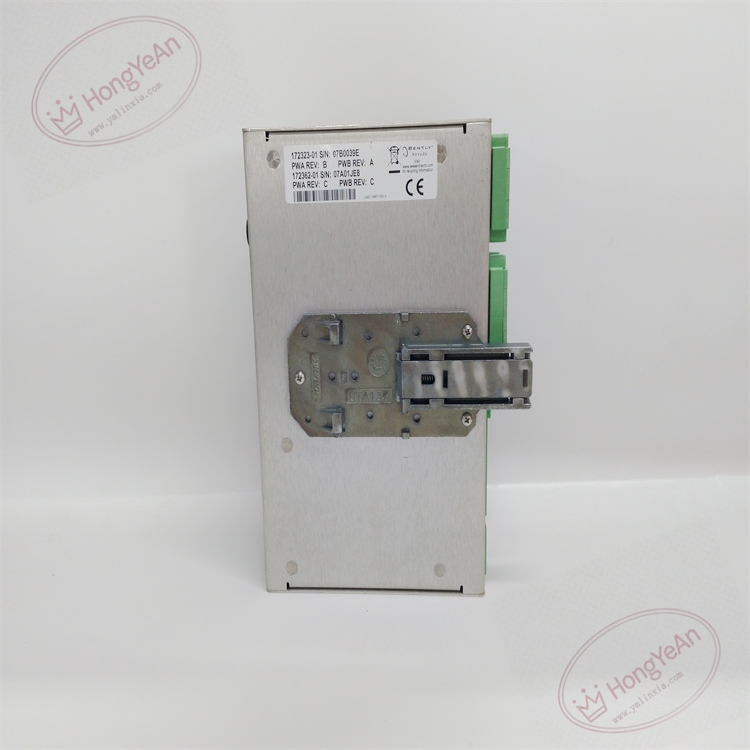

• Mounting: Standard DIN‑rail installation inside control cabinet; compatible with external panel‑mount display‑keypad accessory 172323‑01

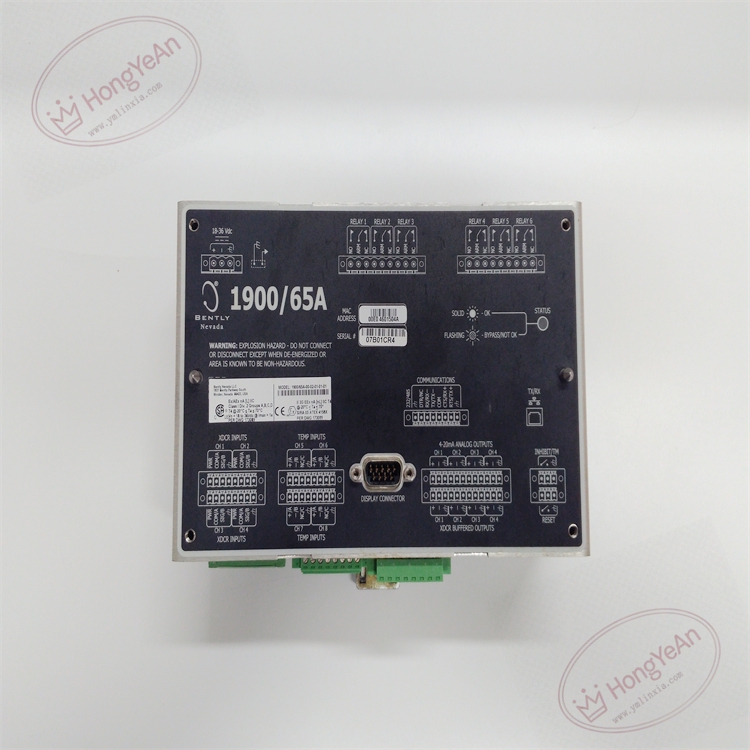

• Termination: Multiple plug‑in screw terminal blocks; transducer inputs, temperature inputs, relay outputs,4‑20 mA analog outputs, power and RS‑485 communication terminals
• Power Supply: Wide‑range 85‑264 VAC,47‑63 Hz AC power input; built‑in surge and reverse‑polarity protection circuit
• I/O Resource: 4 configurable transducer channels (proximity, velocity, accelerometer); 4 temperature channels (RTD / thermocouple); 6‑channel SPDT relay outputs; 4‑channel 4‑20 mA analog recorder outputs; buffered transducer signal output; Modbus‑RTU RS‑485 communication interface
• Mechanical Form: Compact metal‑shielded housing; net weight approx.0.77 kg; dimension 196.9 × 149.4 × 74.4 mm
• PCB: Conformal‑coated multi‑layer FR‑4 PCB inside housing, anti‑corrosion for oily and dusty industrial cabinet environment
• Environmental Ratings: Operating temperature‑40 °C ~ +70 °C; storage temperature‑40 °C ~ +85 °C; relative humidity 5‑95 % non‑condensing; vibration and shock comply with industrial machinery‑monitoring standards
• Electrical Characteristics: Internal high‑resolution 24‑bit ADC signal acquisition. Completes sensor signal conditioning, measurement conversion, Alert/Danger threshold comparison and sensor fault diagnosis locally. Relay groups support software‑selectable Normally‑Energized / Normally‑De‑energized fail‑safe mode. This ordering variant enables hardware interface for external 172323‑01 display‑keypad unit. All channel parameters, sensitivity and alarm setpoints are downloaded from PC configuration software.
• Input Signal Support: Eddy‑current proximity probe, velocity sensor, accelerometer; 2‑wire /3‑wire RTD; Type E/J/K/T thermocouple; mixed‑sensor per‑channel configuration is allowed.

Core Functions

1. Acts as complete stand‑alone monitoring unit for balance‑of‑plant rotating‑machinery including pumps, fans, blowers, motors and small compressors. Collects vibration, displacement and bearing‑temperature signals from field sensors, executes real‑time measurement and alarm comparison inside the unit, outputs discrete alarm status via relay dry‑contacts and analog 4‑20 mA signals to external DCS, PLC and annunciator systems.
2. Four transducer channels are fully software‑configurable for different sensor types. Relay outputs support flexible AND‑OR voting logic based on Alert, Danger and module‑Not‑OK status of any measuring channel. Buffered output provides raw sensor waveform for portable field diagnostic instruments.
3. Hardware interface supports connection to optional remote 172323‑01 panel‑mount keypad‑display for local on‑site data viewing and parameter operation. Modbus‑RTU communication uploads real‑time measurement values, alarm status and event log data to upper‑level host system. Without physical installation of 172323‑01, all parameter modification and commissioning must be completed by workstation configuration software.
4. Built‑in sensor fault diagnosis function: transducer open‑circuit, short‑circuit and signal‑out‑of‑range faults are detected internally. Stores up to 200 timestamped event log entries for maintenance troubleshooting. This equipment is designed for auxiliary balance‑of‑plant machinery monitoring; critical turbine TMR protection application shall adopt 3500‑series rack‑based protection system.
5. Widely applied in power, petrochemical and process‑industry plants for non‑critical rotating‑equipment condition‑protection scenarios. Distinguished by order suffix codes:‑00‑02‑01‑01‑01 defines version with display‑keypad hardware support, AC power supply, Modbus‑RTU interface and standard firmware revision; different suffix variants change channel count, display‑option and communication feature; cross‑replacement requires full re‑commissioning of configuration parameters.

Installation Requirements

1. Mounting requirement: install unit on DIN‑rail inside safe‑area control cabinet. Maintain adequate ventilation clearance around housing, avoid mounting adjacent to high‑heat power components. This unit cannot be inserted into 3500‑05 rack slots. If local HMI is required, separately purchase and install 172323‑01 panel‑mount keypad‑display accessory and complete interconnection wiring.
2. Power‑off operation rule for replacement: cut off AC power supply before wiring or module replacement. Live‑wiring may cause transient signal disturbance, false sensor‑fault diagnosis and random relay‑contact switching action.
3. Field‑wiring specification enforcement: use shielded twisted‑pair instrument cables for sensor and signal wiring. Thermocouple loops must use matched compensating cables. Signal cables shall be physically separated from high‑voltage power cables and large‑current motor cables to suppress electromagnetic interference. Apply proper torque on plug‑in terminal‑block screws; loose connections will generate signal jumping and random sensor‑fault alarms. Strictly follow relay‑contact load rating when connecting external interlock circuits.
4. Cabinet environmental control: maintain good cabinet ventilation. Prevent oil mist, corrosive gas, conductive dust and moisture condensation. Contamination accumulation on internal PCB and terminals will increase contact resistance and degrade long‑term measurement stability and relay‑contact reliability.
5. Pre‑installation visual inspection: inspect housing, terminal blocks and internal connectors before commissioning. Check for mechanical damage, pin bending and foreign‑object debris. Damaged terminals will bring sporadic hard‑to‑reproduce intermittent‑signal faults.
6. Part‑number cross‑version distinction: 1900‑65A‑00‑02‑01‑01‑01 variant has hardware support for external keypad‑display 172323‑01. Other suffix combinations change display‑option, communication functions and power type. Variants cannot directly cross‑replace without re‑downloading project configuration.

Common Failure Modes

‑ Plug‑in terminal‑block oxidation or crimp degradation: intermittent measurement‑value drift, random sensor open‑circuit / short‑circuit fault alarms, unstable relay‑switching action. ‑ Internal PCB circuit damage: partial‑channel or total loss of sensor‑signal acquisition, relay contacts hold fixed state without alarm‑status response. ‑ Conformal‑coating scratch, PCB trace corrosion induced by oil mist or chemical vapor: internal signal‑trace open‑circuit or short‑circuit, permanent failure of partial input / output channels. ‑ ESD electrical overstress damage during field‑handling: fine PCB trace micro‑fracture without obvious exterior damage; manifests as unstable measurement performance under cabinet temperature‑cycling. ‑ Mechanical damage caused by improper installation: housing deformation and internal connector pin deformation; measuring‑channel intermittent‑failure occurs under cabinet‑base vibration operating conditions.
