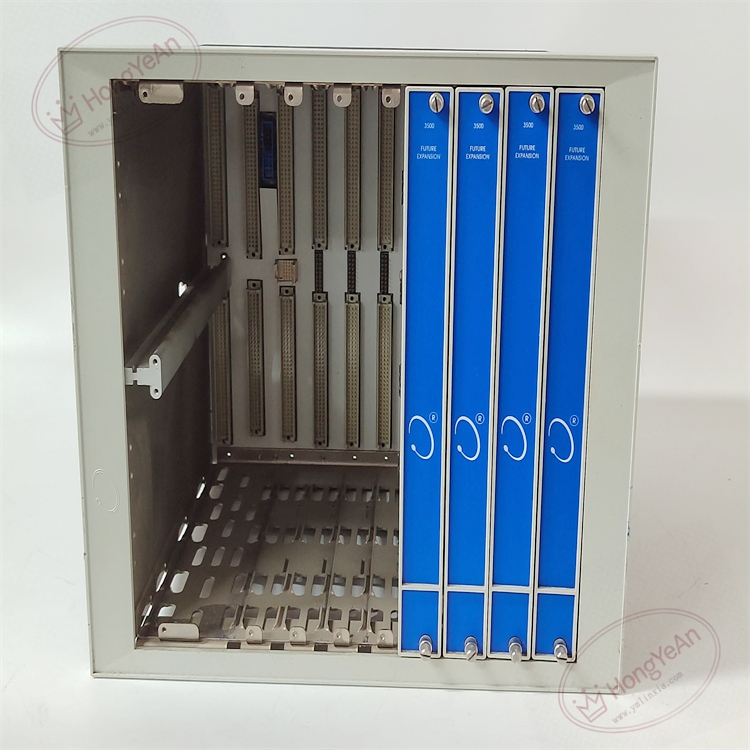

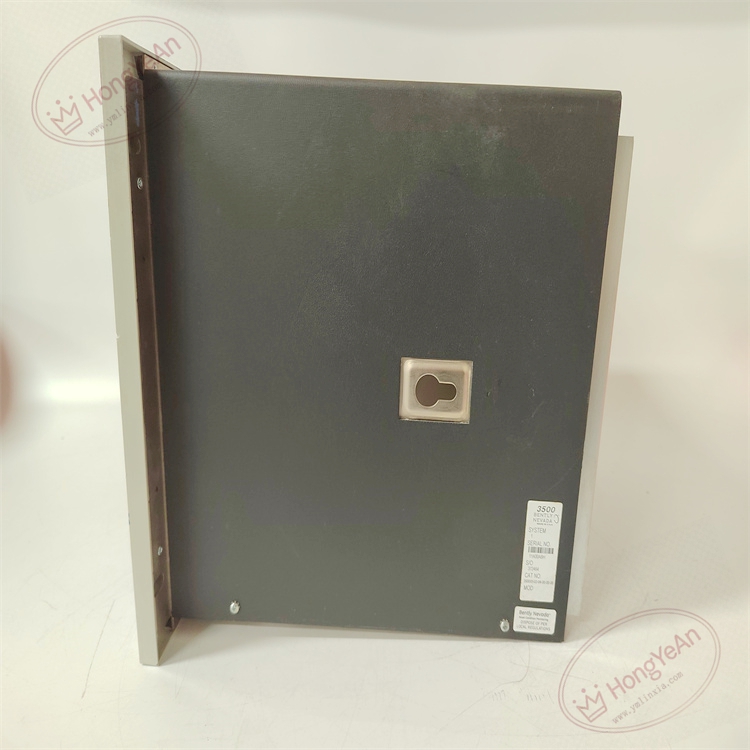

Bently 3500-05-02-04-00-00-00 Mini‑Rack 12‑inch System Rack (Panel‑mount, no agency certification)

Description

Hardware & Electrical Specifications

‑ Manufacturer: Bently Nevada (Baker Hughes) ‑ Compatible System: 3500 series machinery protection TSI system ‑ Total slots: 7 module slots (mini‑rack) ‑ Slot allocation：  Slots 0‑1：Half‑height slots for redundant power‑supply modules  Slot 2：Reserved for 3500/22M rack‑interface module  Slots 3‑6：General‑purpose slots for monitoring / relay / communication modules ‑ Backplane function：Distribute ±5 V, ±15 V, 24 VDC power; high‑speed inter‑module communication bus ‑ Mounting：Panel‑cut‑out mounting (mini‑rack panel‑mount type) ‑ Chassis material：High‑strength steel‑plate with epoxy anti‑corrosion coating ‑ Enclosure rating：IP20 (cabinet‑internal use only) ‑ Certification：No hazardous‑area certification, no‑CE mark ‑ Hot‑swap：Individual modules support hot‑swap under redundant‑power configuration. Whole rack chassis non‑hot‑swappable; de‑energize rack power before chassis replacementBaker Hugh…

Environmental Specifications

‑ Operating Temperature: 0 °C ~ +60 °C ‑ Storage Temperature: ‑40 °C ~ +85 °C ‑ Relative Humidity: 5%‑95 % non‑condensing ‑ Vibration & Shock: Complies with API‑670 power‑plant cabinet EMC standards

Mechanical Data

‑ Dimension(W×H×D):305 mm ×178 mm ×283 mm ‑ Weight: approx 6.0 kg (empty rack, no modules)

Core Functions

1. Compact mechanical carrier：Provides mechanical housing and positioning for 3500 series power, monitoring and communication modules for space‑limited cabinet.
2. Backplane power distribution：Delivers multi‑rail DC power from power‑supply cards to every plugged‑in module.
3. Inter‑module high‑speed communication：Internal backplane bus realizes data exchange between monitor cards and 3500/22M interface module.
4. Redundancy support：Supports dual redundant power‑supply architecture for improving system reliability.
5. Compact‑site adaptation：7‑slot mini‑rack fits small‑size cabinet for auxiliary turbine, pump and fan machinery‑protection application.

Installation, Replacement & Critical Warnings

1. De‑energize rack power supply before replacing whole rack chassis. Rack itself is non‑hot‑swappable.
2. This is 7‑slot mini‑rack panel‑mount variant, cannot directly interchange with 14‑slot full‑size rack; confirm full suffix code before purchasing.

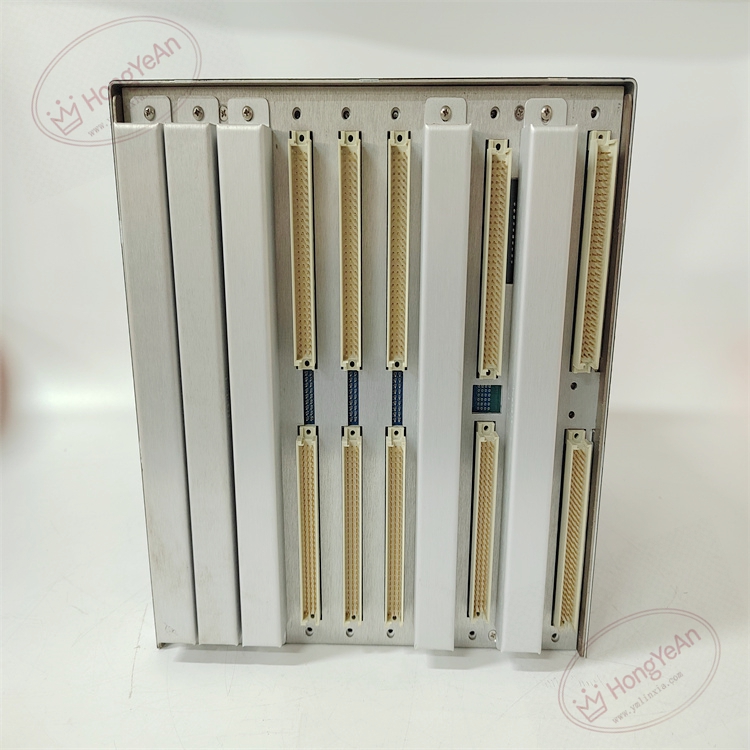

3. Inspect backplane gold‑plated contacts; bent, oxidized or contaminated pins cause intermittent communication and power faults.
4. After replacement, install modules sequentially, verify power‑on status, download system configuration by 3500 Rack Configuration software.

5. Common failure mode：Backplane pin corrosion, circuit‑trace damage caused by electrical surge. Inspect cabinet humidity and grounding when random module‑offline faults appear.
