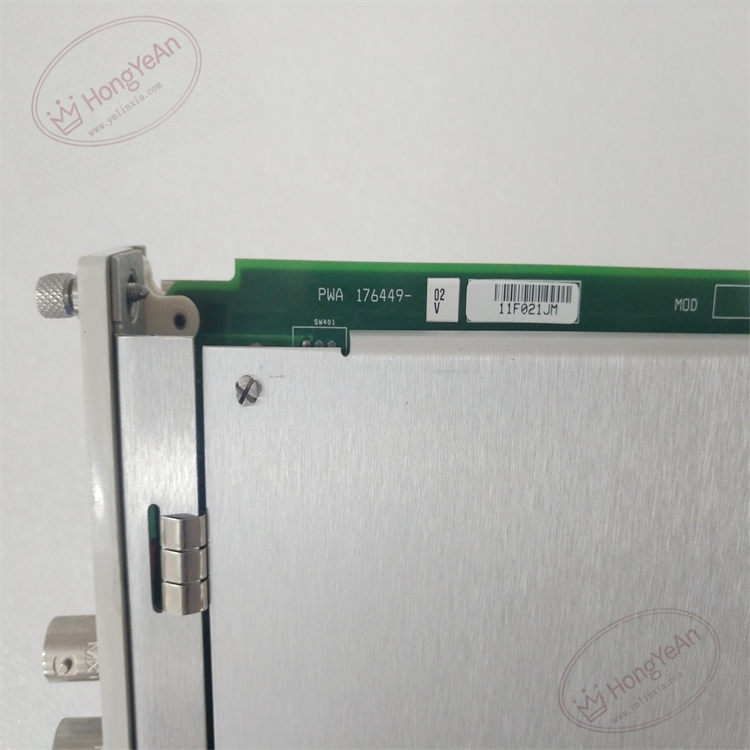

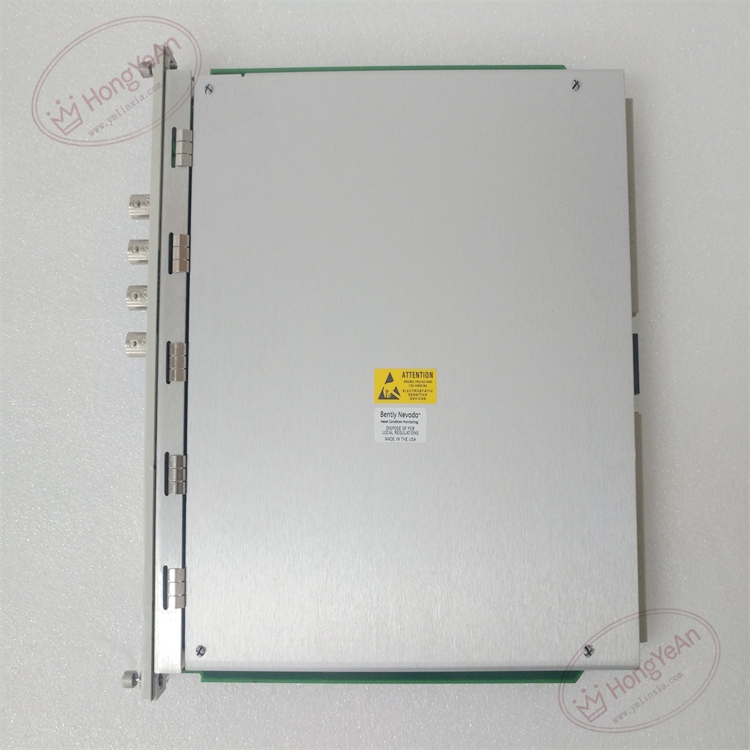

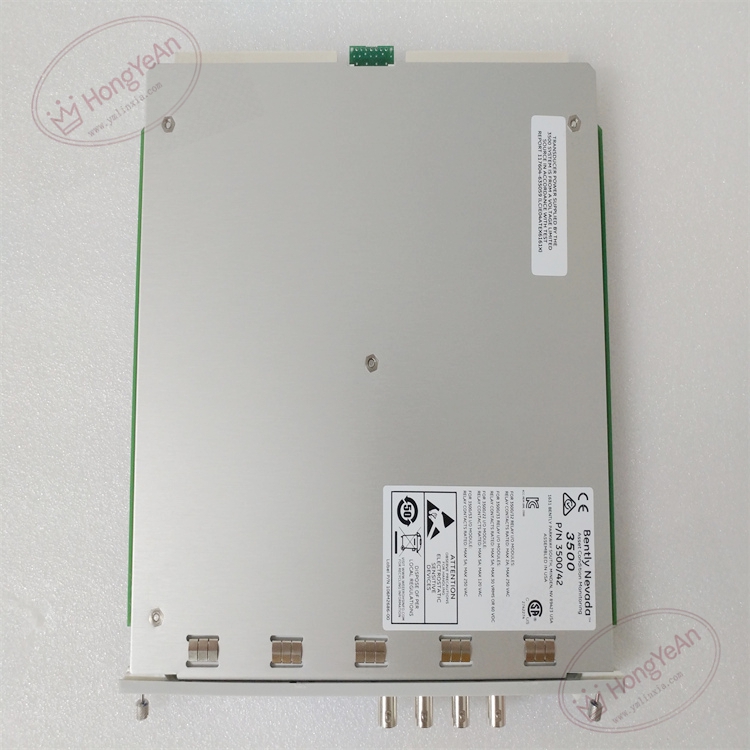

Bently 3500-42M 176449-02新款 Four‑Channel Proximitor and Seismic Monitor Main Board

Description

Hardware & Electrical Specifications

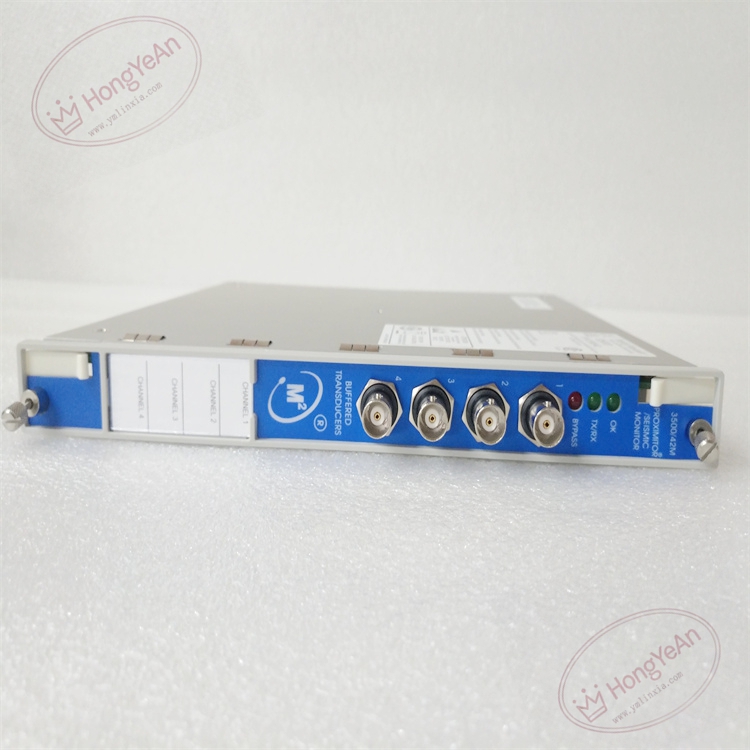

‑ Manufacturer: Bently Nevada (Baker Hughes) ‑ Compatible System: 3500‑05 full‑size / mini TSI rack, cooperates with 3500/22M TDI module, requires M‑series system firmware ‑ Functional Type: Latest‑Generation 4‑Channel Mixed‑Input Proximitor & Seismic Monitor ‑ Channel quantity: 4 multi‑functional input channels ‑ Supported transducers:  ‑ Proximity probe:3300XL eddy‑current series  ‑ Seismic: velocity sensor, acceleration transducer ‑ Probe excitation power:‑24 VDC supplied by module ‑ Programmable sensitivity:  Proximity:100 mV/mil (3.94 mV/μm), 200 mV/mil (7.87 mV/μm)  Acceleration:100 mV/g  Velocity:20 mV/(mm/s) pk ‑ Frequency response:0.5 Hz ~ 15 kHz (‑3 dB) ‑ Measurement accuracy:max ±1 % full‑scale ‑ Typical power consumption:7.7 W, powered by rack backplane bus ‑ Front‑panel: Four BNC buffered transducer output connectors; status LED: OK, TX/RX, per‑channel fault indicators ‑ Matching Parts: Main‑board 176449‑02 must pair with corresponding rear I/O board, multiple variants for different sensor combinations, sold separately ‑ Hot‑swap: Supports hot‑swap; during replacement, four channels of this module lose measurement & protection; other rack modules keep running normally. ‑ PCB Coating: Conformal coated for G3 harsh industrial cabinet environment ‑ Safety Certification: SIL‑2 capable within complete certified 3500 system set; ATEX / UL hazardous‑area approvals availableBaker Hugh….

Environmental Specifications

‑ Operating Temperature:‑30 °C ~ +65 °C ‑ Storage Temperature:‑40 °C ~ +85 °C ‑ Relative Humidity:5%‑95 % non‑condensing ‑ Vibration & Shock: Complies with API‑670 power‑plant cabinet EMC standards

Mechanical Data

‑ Dimension(W×H×D):25.4 mm ×120.7 mm ×251.5 mm ‑ Weight: approx 0.92 kg

Core Functions

1. Mixed‑sensor signal conditioning: Supply‑24 VDC for proximity probes; condition seismic velocity / acceleration signals. One module processes both shaft‑relative and casing‑absolute vibration.
2. Multi‑mode measurement: Channel‑pair configurable for radial vibration, thrust position, differential expansion, eccentricity REBAM, casing vibration, shaft‑absolute measurement.
3. Phase‑related analysis: Accept rack‑wide Keyphasor timing reference, calculate 1X/2X amplitude & phase angle, support start‑up / coast‑down transient waveform capture.
4. Two‑level alarm processing: Alert and Danger setpoints with configurable delay; generate rack system events, trigger relay‑module hardware alarm/trip output.
5. Analog output: Each channel provides isolated 4‑20 mA output via rear I/O board for DCS data acquisition.
6. Buffered BNC outputs: Front‑panel short‑circuit‑protected BNC copies raw transducer signal for portable field diagnostic instrument connection.

Installation, Replacement & Critical Warnings

1. Supports hot‑swap; the four channels of this module lose measurement & protection during pulling‑out; other rack modules keep running.
2. Compatibility warning: ‑ Form‑fit‑function replacement for legacy 140734‑02; physical dimension and pin definition are consistent. Verify rack firmware version before cross‑generation substitution; old firmware may cause abnormal phase calculation. ‑ Multiple rear I/O board variants for 176449‑02; select correct I/O part‑number according to on‑site sensor type (proximity / seismic mixed‑configuration). ‑ TMR triple‑redundant rack requires three identical 176449‑02 modules for three‑way redundant measurement.
3. After replacement, check OK and channel LED status; download rack configuration project, verify gap/vibration reading, alarm threshold and 4‑20 mA output function.

4. Common failure mode:‑24 VDC transducer power circuit damage, BNC buffer‑circuit surge damage, component aging; transducer cable short‑circuit may burn front‑end conditioning circuit.
