FLA6041-ND080F0110 Fast Linear Actuator

Description

Core performance features

Diaphragm structural design, stroke 4 mm. Working medium is compressed air, working pressure range 0‑1 bar; can also apply vacuum for reverse driving. Typical response time approx 7 ms, supports high‑frequency repeated movement. No internal sliding friction pair, long service life under frequent cycle working condition. Metal rectangular housing, one side is air‑pipe interface for air source connection; multi‑pin circular electrical plug for feedback signal output. Built‑in position feedback sensor, can feed real‑time displacement status back to upper‑level control unit. Ambient working temperature 0‑40 ℃, IP66 protection grade, suitable for workshop on‑site installation, not limited inside cabinet. Weight about 2.4‑2.6 kg. Different suffix codes correspond to different stroke; ND080F0110 is 4 mm stroke, ND080F0112 is 8 mm stroke variant.

Physical appearance

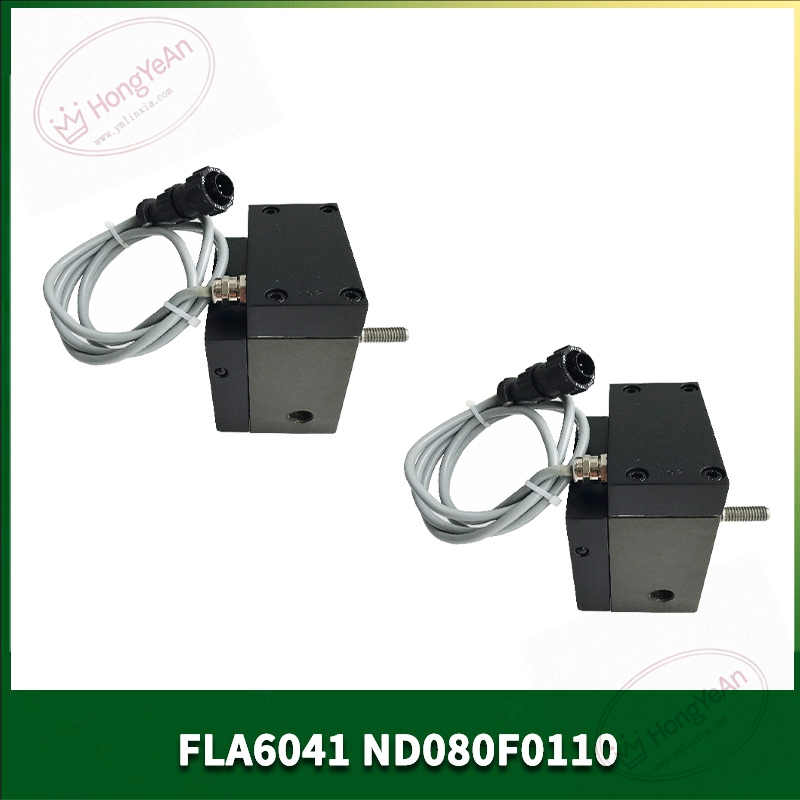

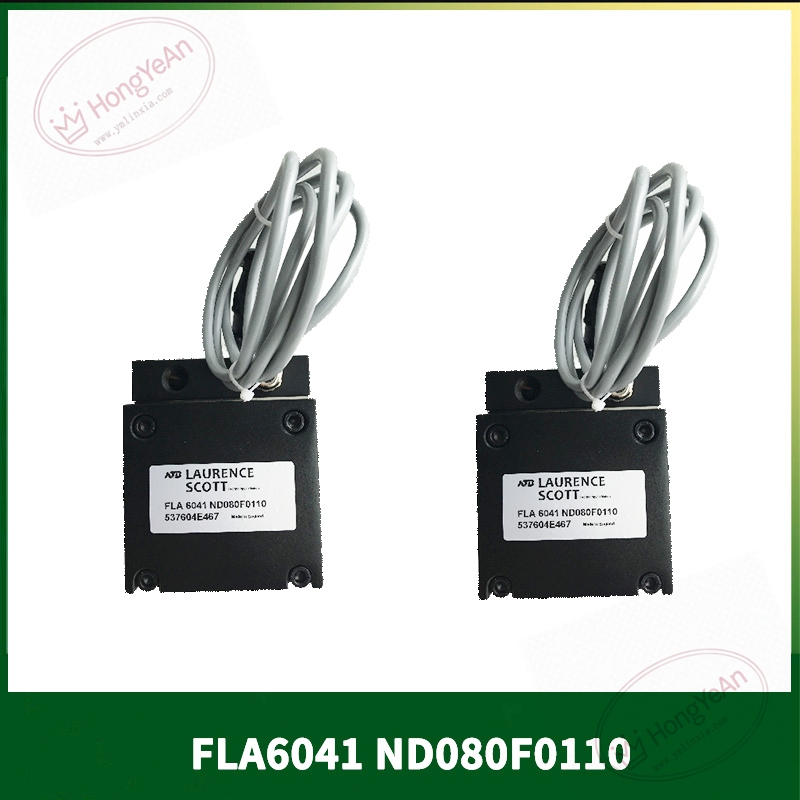

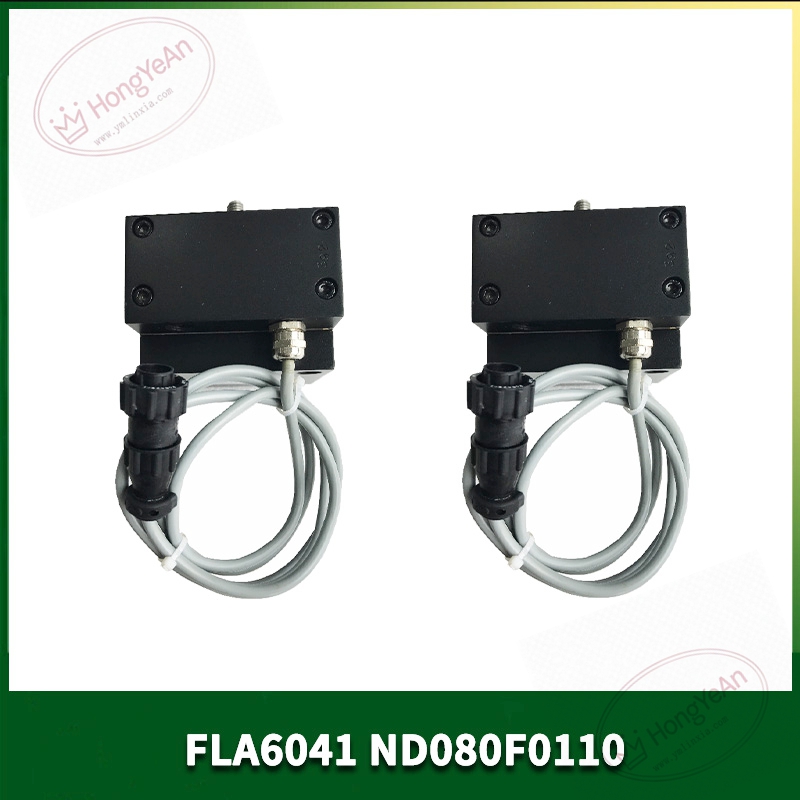

Whole unit is square thick metal casing, matte black painted metal housing. ‑ Front side: protruding driving push‑rod output end, completing linear reciprocating motion. ‑ Side: air pipe thread connector for compressed air supply; circular multi‑pin electrical connector for position‑feedback signal cable. ‑ Outer housing pastes red label printed with part‑number FLA6041‑ND080F0110. ‑ Four mounting through‑holes on housing corners for bolt fastening onto equipment support frame.

On‑site application scenarios

Applied in high‑speed sorting machinery, material cutting equipment and special‑purpose automation machines. It performs quick knocking, pushing and material‑separating actions. When actuator fails, push‑rod action will be slow or no movement, which causes production‑line abnormal stop. It is used as spare replacement part for old automation equipment. After replacement, adjust air‑source pressure and check feedback‑signal reading, no complex program modification required.

Installation & operating notes

Fix firmly via four mounting holes; avoid mechanical impact on the front push‑rod. Clean dry compressed air must be supplied; add air filter to prevent dust and moisture entering inner diaphragm chamber. Excessive air pressure will damage internal diaphragm. Signal cable uses shielded wiring, keep away from high‑power cables to reduce interference leading to position feedback jitter. Do not disassemble metal housing on‑site; diaphragm belongs to wearing part. Once internal damage occurs, replace whole actuator unit.

Common field phenomena & disposal thoughts

1. Push‑rod no movement: Check compressed‑air supply pressure and pipeline blockage. Inspect air‑pipe joint for air leakage.
2. Action slow / weak output: Air pressure insufficient; diaphragm aging and internal air leakage.
3. Position feedback signal loss: Check circular electrical plug locking condition. Inspect sensor circuit wiring.
4. High cycle frequency but short service life: Confirm working air pressure is within rated range; avoid mechanical collision to push‑rod end.
