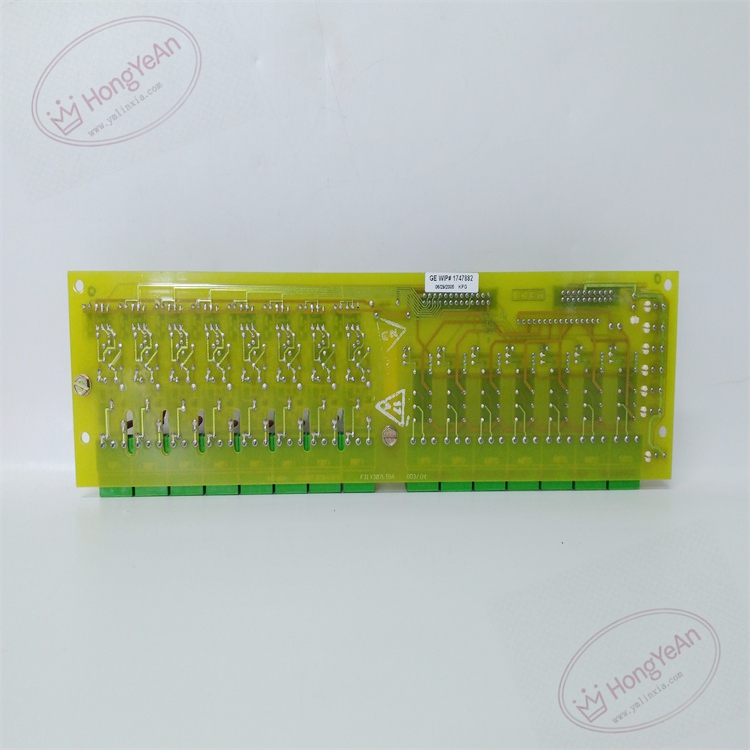

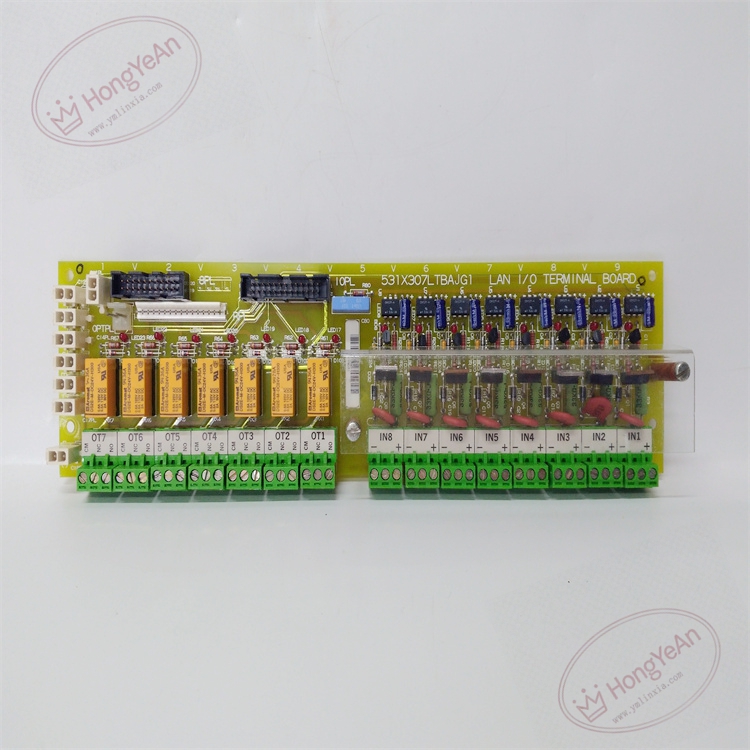

GE 531X307LTBAJG1 LTBAJ LAN I/O Terminal Board

Description

Hardware & Electrical Specifications

‑ Manufacturer: GE General Electric ‑ Compatible System: DC‑300 drive, EX2000 excitation system ‑ Functional Acronym: LTBAJ (LAN I/O Terminal Board) ‑ Inputs: 8 configurable universal discrete inputs, 2‑240 VAC/DC ‑ Outputs: 7 Form‑C relay outputs for alarm, trip and status signals ‑ Connectors: Screw field terminal blocks, multi‑pin ribbon headers for rack internal connection ‑ On‑Board Jumpers: Input signal‑level configuration jumpers. All jumper positions must be exactly duplicated during replacement ‑ Indicators: LED status for input channel and relay‑output fault diagnosis ‑ Power Source: 24 VDC logic power supplied from drive rack ‑ PCB Finish: Conformal coated multilayer PCB ‑ Compatibility Restriction: For DC‑300 / EX2000; incompatible with Mark‑VI / Mark‑VIe racks. G1 denotes hardware revision.

Environmental Specifications

‑ Operating Temperature: 0 °C ~ +60 °C ‑ Storage Temperature: −40 °C ~ +85 °C ‑ Relative Humidity: 5%‑95 % non‑condensing ‑ Installation Environment: Drive‑excitation cabinet interior, Pollution Degree 2 ‑ EMC: Designed for power‑plant cabinet EMI and switching‑transient conditions

Mechanical Data

‑ Mounting: Rack‑mount terminal board ‑ Weight: approx 0.45 kg

Core Functions

1. Field‑wiring interface: Screw terminals connect external interlocks, push‑buttons and indicator devices to control rack.
2. Signal‑level conversion: Converts wide‑range AC/DC field discrete inputs into standard 24 VDC logic signals.
3. Relay alarm outputs: Form‑C relay contacts output drive fault, trip and equipment status signals to field peripherals.
4. LAN‑side signal routing: Transmits processed discrete I/O signals to LCCBA LAN communication board and DCCA main drive controller.
5. On‑board diagnostics: LED indicators support commissioning and troubleshooting of field‑side I/O faults.

Installation, Replacement & Critical Warnings

1. Complete system power‑down and lock‑out procedure required before servicing. Non‑hot‑swappable. ESD wrist‑strap protection is mandatory for PCB handling.
2. Record all jumper positions before removal. Wrong jumper configuration will lead to incorrect input status interpretation.
3. Tighten field screw terminals and ribbon‑cable connectors; loose connections cause intermittent interlock faults and unexpected drive trips.
4. After power‑on, perform full I/O loop verification: check LED status, validate input response and relay‑output action.

5. Common failure mode: Field‑wiring surge damages input circuits; relay‑contact wear after long‑time operation. Inspect field wiring when I/O status anomalies occur.
