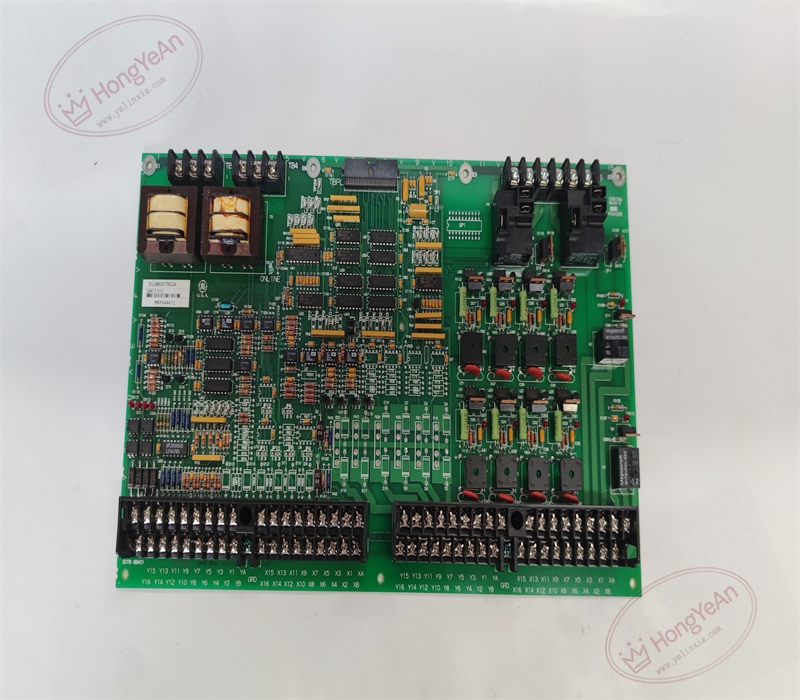

GE DS200DDTBG1A LCI Auxiliary I/O Terminal Board

Description

Hardware & Electrical Specifications

‑ Model: DS200DDTBG1A ‑ Part Number: DS200DDTBG1A ‑ Module Type: Mark V / LS2100 LCI Auxiliary I/O Terminal PCB Board ‑ Mounting: Screw‑fastened installation inside Mark V control cabinet rack ‑ Connectors:  • Multi‑position field‑wiring terminal blocks for field‑sensor and actuator wiring  • System bus headers for connection to IS200ADMAH1A ADMA board ‑ Configuration components: 12 on‑board hardware jumpers, 3 sets of DIP‑switches for channel‑mode and input‑type assignment ‑ Signal support: 4‑20 mA analog loop inputs, high‑voltage AC inputs, LEM/CT current‑feedback inputs, 4 buffered analog outputs ‑ Power supply: Logic power supplied from Mark V system backplane ‑ Isolation: Galvanic isolation between field‑side signals and internal controller logic circuits ‑ Diagnostics resources: 17 on‑board LED status indicators (DS1‑DS17) for hardware and software driven channel status display ‑ PCB treatment: Standard industrial conformal‑coated multilayer circuit board ‑ Compatibility note: Designed exclusively for GE Speedtronic Mark V and LS2100 static‑starter platforms; not drop‑in compatible with Mark VI / Mark VIe systems. After replacement, verify jumper and DIP‑switch settings match original unit, tighten all field‑wiring and system‑bus connectors, perform signal‑loop injection tests and validate controller I/O readings.

Environmental Specifications

‑ Operating temperature: 0 ℃ ~ +60 ℃ ‑ Storage temperature: −40 ℃ ~ +85 ℃ ‑ Relative humidity: 5%‑95% non‑condensing ‑ Installation location: Indoor control cabinet, Pollution Degree 2, IP20 ‑ EMC compliance: Industrial control EMC requirements for power‑turbine and static‑starter equipment ‑ Certifications: CE, UL compliant for power‑generation control‑system components

Mechanical Data

‑ Board dimension: 203.2 mm (8 in) width × 152.4 mm (6 in) length ‑ Mounting: Four‑point screw fixed mounting onto cabinet card rack ‑ Weight: approx 0.50 kg

Main Functions

1. Provides signal conditioning, termination and galvanic isolation for LCI static‑starter and turbine‑auxiliary I/O signals between field‑mounted sensors, CT/LEM transducers and the Mark V ADMA/DSPC control hardware. Converts raw field‑measurement signals into compatible levels for DSP processing.
2. On‑board jumpers and DIP‑switches enable channel‑configuration for different signal types without modifying other system boards. 17 LED indicators offer direct visual channel‑status observation for on‑site maintenance troubleshooting.
3. Four buffered analog output channels deliver conditioned control signals to external drive‑related equipment. Integrated surge‑suppression components protect control‑system electronics from field‑side transient noise.

Installation & Wiring Requirements

1. Cut off complete rack power supply before installation or replacement. Non‑hot‑swappable. ESD wrist‑strap protection is mandatory during board handling.
2. Secure DS200DDTBG1A onto cabinet rack with four mounting screws. Reproduce jumper‑setting and DIP‑switch‑configuration exactly matching the original hardware settings. Secure field‑wiring terminals and system‑bus headers firmly.
3. All field wiring must strictly follow Mark V / LS2100 system wiring drawings. Reliable protective‑earth connection for control cabinet is mandatory.
4. After replacement: Restore rack power supply. Verify LED status indications. Inject test signals for each analog input channel and confirm controller read‑back accuracy. Validate static‑starter related control‑loop response.
5. Replacement note: Misconfigured jumpers or DIP‑switches will result in incorrect signal scaling, static‑starter malfunction or turbine‑trip events. Full‑system commissioning and protection‑logic verification test is mandatory before putting turbine‑starter control into service.
