MAGNETEK-GPD506V-B004 General‑Purpose AC Variable‑Frequency Drive

Description

Technical highlights

Rated power: 3HP (2.2kW), 460V three‑phase input, rated output current 5.1A. Control modes include V/F and open‑loop vector control. 150% overload capacity for 60‑second duration. Built‑in PID function, RS485 Modbus‑RTU communication interface. Multiple protection functions: over‑current, over‑voltage, over‑heat and motor overload protection. Operating ambient:‑10℃~+50℃; storage‑40℃~+85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount only. Compatibility note: Parameters need to be backed‑up before replacement. It shares hardware platform with Yaskawa CIMR‑P5 series, but parameter settings cannot be directly interchanged without verification.

Physical features

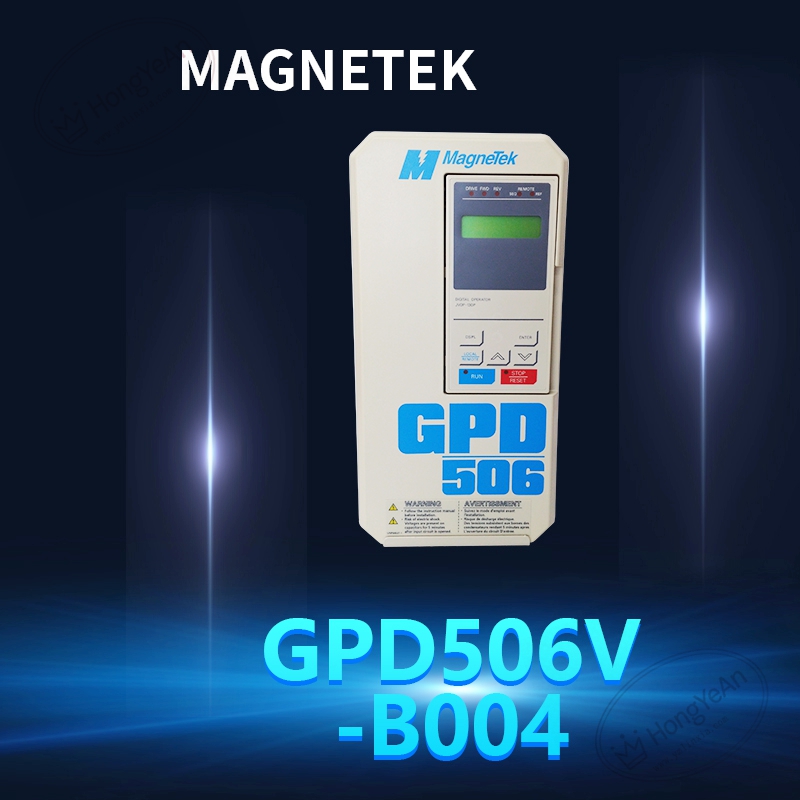

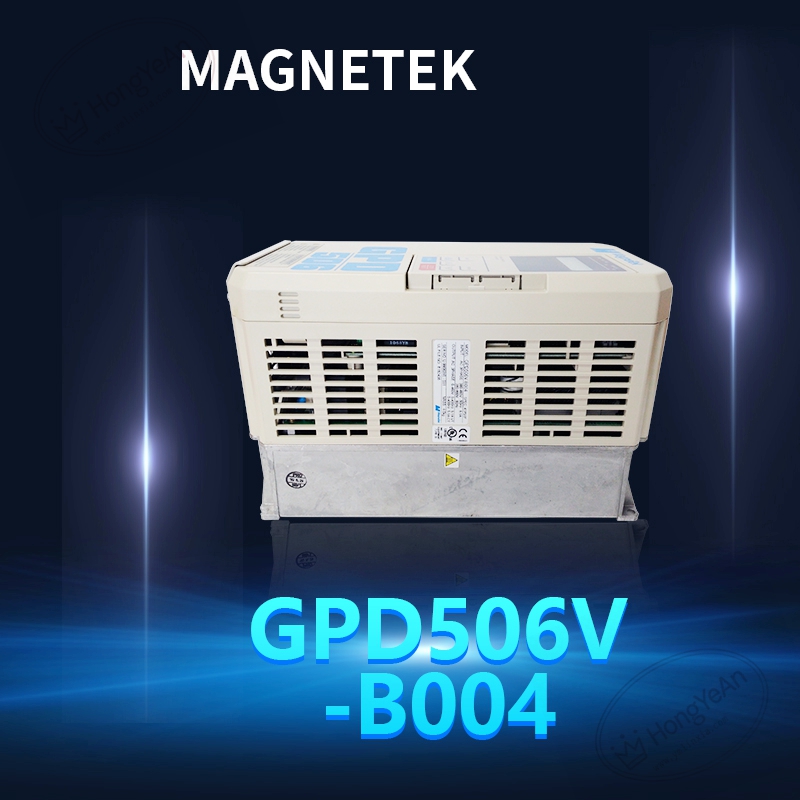

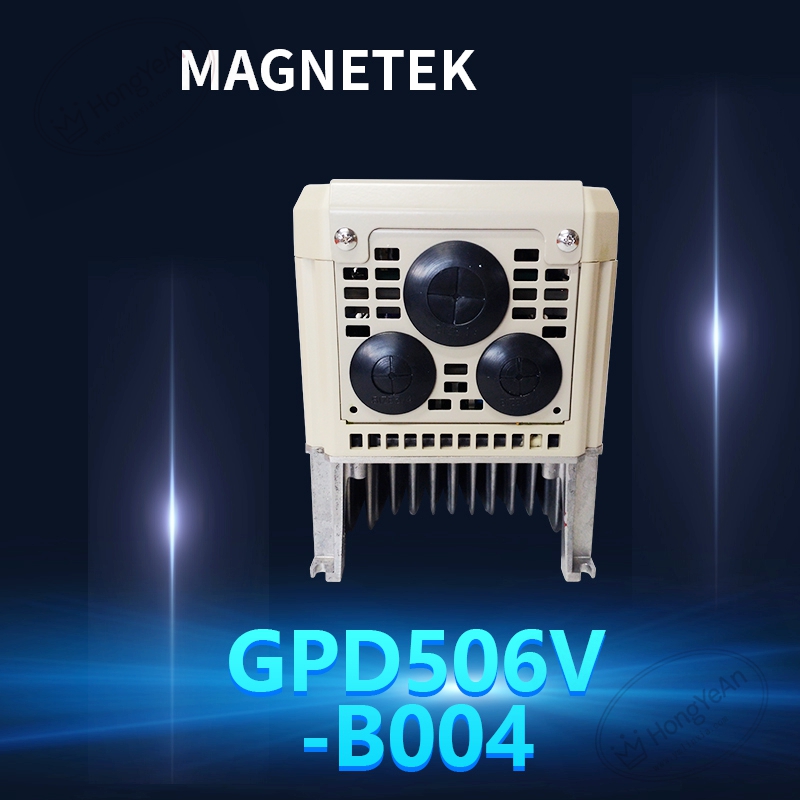

Standard book‑type cabinet‑mount frequency converter. Front panel equipped with digital display, operation keypad and status LED indicators. Lower section contains power terminal blocks for main‑circuit wiring; control terminals for analog/digital signals locate on side area. Integrated aluminum heat‑sink for cooling. Part‑number GPD506V‑B004 is marked on nameplate label. Internal circuit board uses conformal coating for industrial cabinet dust‑proof performance.

Site application scenario

Commonly applied in fan, pump, conveyor and general‑purpose motor drive occasions for manufacturing workshops. It adjusts motor operating speed to satisfy process requirements and realize energy‑saving operation. Drive hardware failure results in motor shutdown. External contactor or safety interlock shall be configured for critical loads. After replacement, complete power‑on self‑test, restore original parameter group, verify motor running status, check communication link before putting into service.

Installation & maintenance notes

Cut off main‑circuit power supply before maintenance, wait sufficient time for DC‑bus capacitor discharge. Power cables and control signal cables shall be routed separately to reduce electromagnetic interference. Shielded cable is recommended for analog and communication wiring. Backup complete parameter list before replacement. On‑site component‑level repair is prohibited; replace complete drive unit under permanent hardware damage.

Common site fault performances

1. Drive reports over‑current alarm: Check motor winding insulation, cable short‑circuit condition, verify acceleration‑deceleration parameter setting.
2. No display after power‑on: Inspect three‑phase input voltage and main‑circuit fuse.
3. Motor cannot run with normal display: Check run command source, frequency reference setting and external interlock signal status.
4. Communication cannot connect: Verify RS485 wiring, station address and baud‑rate configuration.
