Description
Technical highlights
Supports Modbus‑RTU and HART protocol communication. Realizes signal conditioning for analog and digital I/O channels, data forwarding between backplane bus and field side equipment. On‑board self‑diagnosis monitors hardware running status and reports channel failure alarm. Module power is supplied via rack backplane. Operating ambient:‑20℃~+60℃; storage‑40℃~+85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount only. Compatibility note: It matches Metso Valmet legacy rack system. Slot position and firmware version must be consistent during replacement; mismatched setting leads to communication breakdown.
Physical features

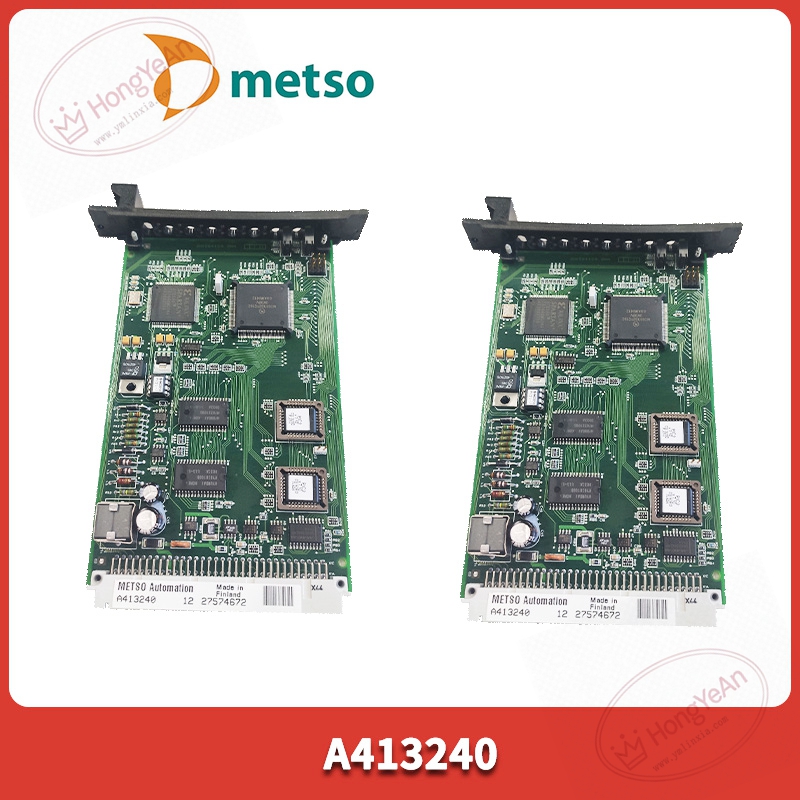

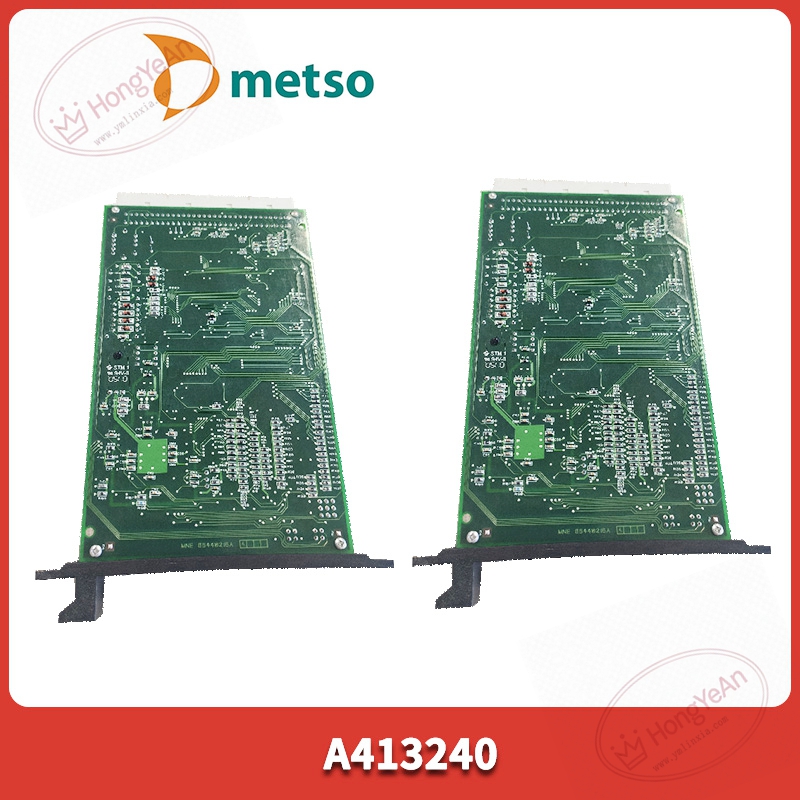

Rack‑slot plug‑in PCB module. Front panel is equipped with status LED indicators. Rear high‑density connector connects to rack backplane for power and internal bus transmission. Side terminals are reserved for field signal wiring. Part‑number A413240 is marked on module label. PCB adopts conformal coating for dust‑proof and anti‑corrosion performance in industrial cabinet surroundings.
Site application scenario
Mainly deployed in pulp‑paper mills, chemical plant and power‑plant process control racks. It acts as intermediate interface for field transmitters and actuators, completing signal acquisition and command transmission. Single‑channel damage causes corresponding field point out‑of‑service. Whole‑module fault will interrupt all signals passing through this board. After replacement, insert module into specified slot, check backplane contact quality, verify communication parameter configuration, compare I/O reading with field actual signal before commissioning.
Installation & maintenance notes
Power off rack before swapping module, anti‑static protection is required. Avoid scratching rear connector pins. Field signal cables adopt shielded wiring, keep separated from high‑power cables to reduce electromagnetic interference. Check connector tightness during routine overhaul; oxidation and loose contacts trigger intermittent signal faults. On‑site component‑level repair is prohibited. Replace complete module under permanent hardware damage.
Common site fault performances
- Partial channel signal deviation or no signal output: Check field wiring and terminal corrosion, judge onboard signal‑processing circuit damage.
- Communication link unstable or offline: Verify Modbus‑RTU baud‑rate, station address and shielding grounding condition.
- Module cannot be identified by system: Re‑seat module, inspect backplane power supply and bus connection status.
- Random signal flicker: Check cabinet operating temperature and external interference source.
