TELKOOR-AC-3U-250 3U CompactPCI Hot‑Swap AC Power Supply Module

Description

Technical highlights

Wide AC input range: 90‑264 VAC, 47‑63Hz auto‑range, power factor up to 0.98 at full load. DC outputs: +5V@25A, +3.3V@36A, +12V@5A, ‑12V@0.5A, total continuous power 250W under forced‑air cooling. Supports N+1 redundant parallel operation with internal OR‑ing circuit. Built‑in over‑voltage, over‑current, short‑circuit and over‑temperature protection. Operating ambient: 0℃ ~ +55℃; storage‑40℃ ~ +85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount only. Compatibility note: Must match CompactPCI chassis backplane. Redundant parallel application needs consistent hardware variant. Observe chassis air‑cooling requirement; insufficient airflow will trigger over‑temperature shutdown.

Physical features

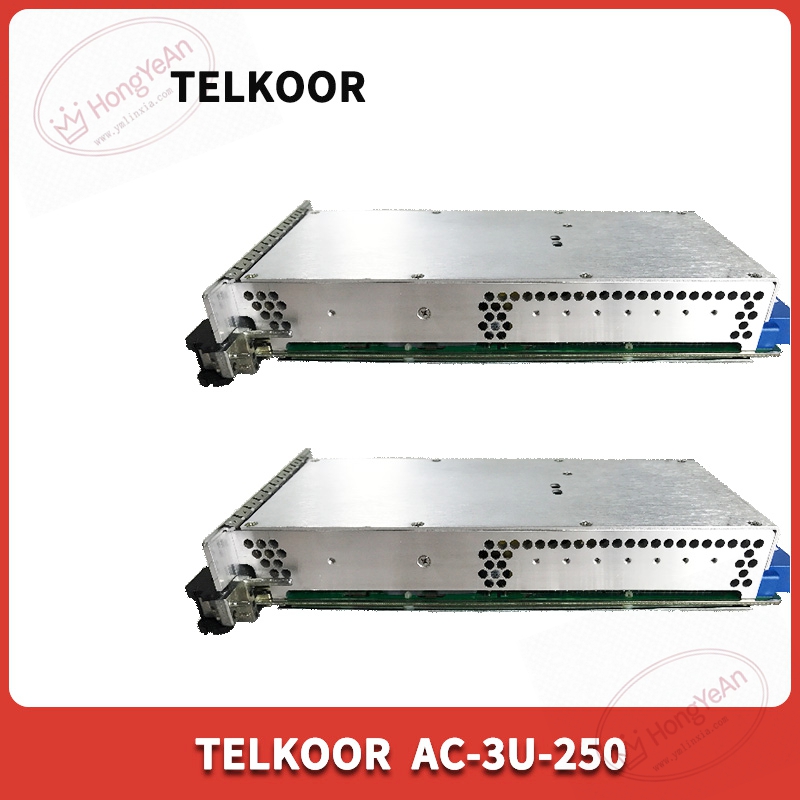

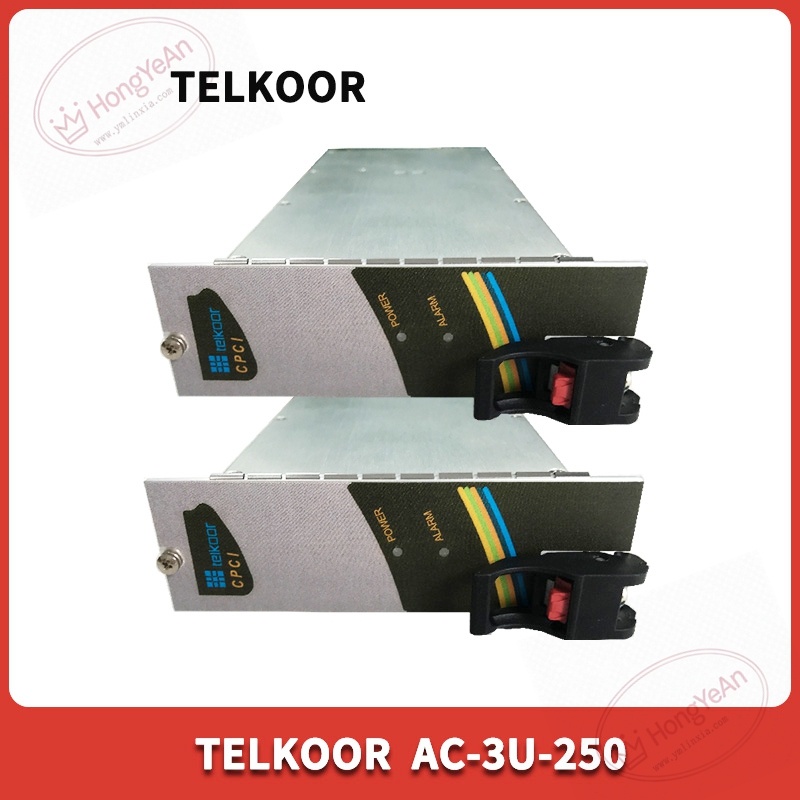

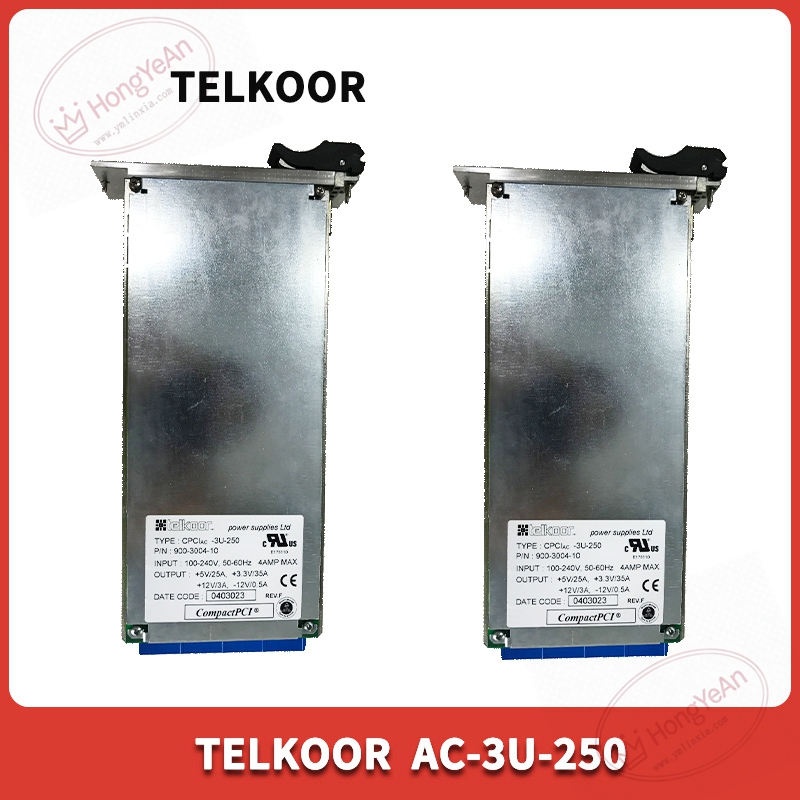

Standard 3U CompactPCI Eurocard form‑factor. Front panel fitted with power/fault LED indicators and ejector latch for hot‑swap operation. Rear P1/P2 CompactPCI connector completes AC input and backplane DC power distribution. Part‑number AC‑3U‑250 is marked on module nameplate. PCB adopts conformal‑coated treatment for dust‑proof performance in industrial cabinet surroundings.

Site application scenario

Mainly deployed in hardware‑in‑loop simulation platforms and legacy CompactPCI industrial control racks. Provides reliable multi‑rail DC power for whole‑slot CPCI boards. Single module failure will cut off power for corresponding rack slots. Under N+1 redundant configuration, standby power unit will take over automatically to avoid system crash. After replacement, insert module into designated power slot, lock ejector latch firmly, check backplane contact condition, verify power‑on status and output voltage stability before commissioning.

Installation & maintenance notes

Cut off rack AC power before replacement. Anti‑static protection required during handling. Avoid scratching rear P1/P2 connector pins. Separate AC power cables from low‑signal control cables to reduce electromagnetic interference. Ensure chassis fan cooling meets specification; poor ventilation will activate thermal protection. On‑site component‑level repair is prohibited. Replace complete power‑supply unit when permanent hardware damage occurs.

Common site fault performances

1. Power LED keeps off after power‑on: Check AC input loop and internal input fuse condition.
2. System random reset or crash: Inspect cabinet temperature, fan performance and backplane contact quality.
3. Redundancy parallel function abnormal: Confirm hardware variant consistency and backplane OR‑ing signal integrity.

4. Over‑temperature alarm frequently triggered: Verify chassis air flow and power‑supply derating margin.
