Description
Technical highlights
Built‑in process logic processing, supports external I/O expansion modules. Equipped with handheld keypad‑display unit for onsite parameter setting and fault diagnosis. Power supply: 24 VDC. Comes with dedicated battery module for program and data retention during power‑off. Multiple communication interfaces for host computer and peripheral equipment connection. Operating ambient: 0℃ ~ +55℃; storage‑40℃ ~ +85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount installation. Compatibility note: Must match PC2‑series peripheral modules and special programming tool. After replacement, download complete user program, verify hardware revision consistency.
Physical features

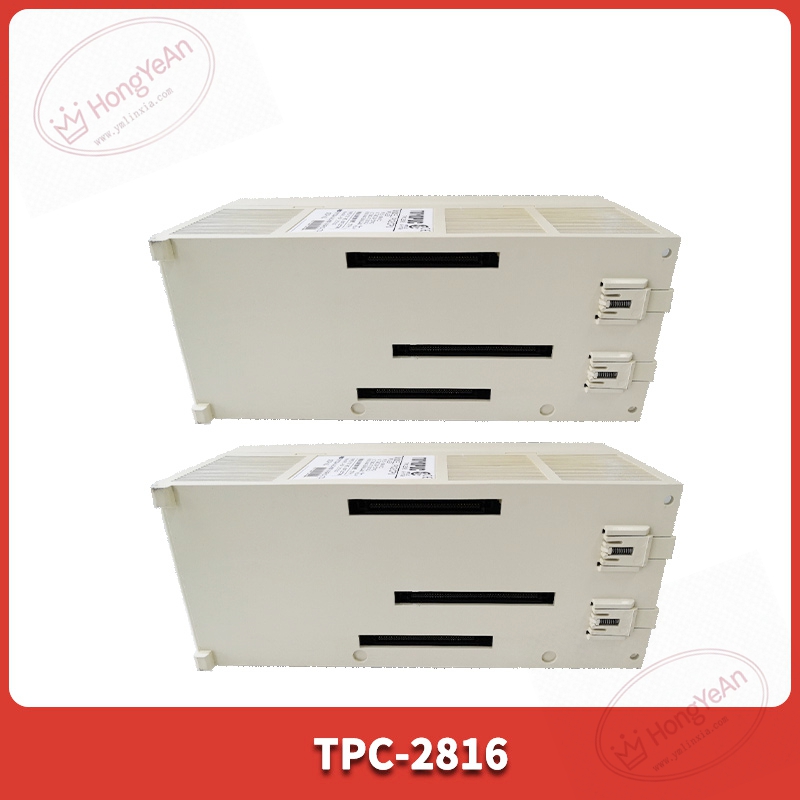

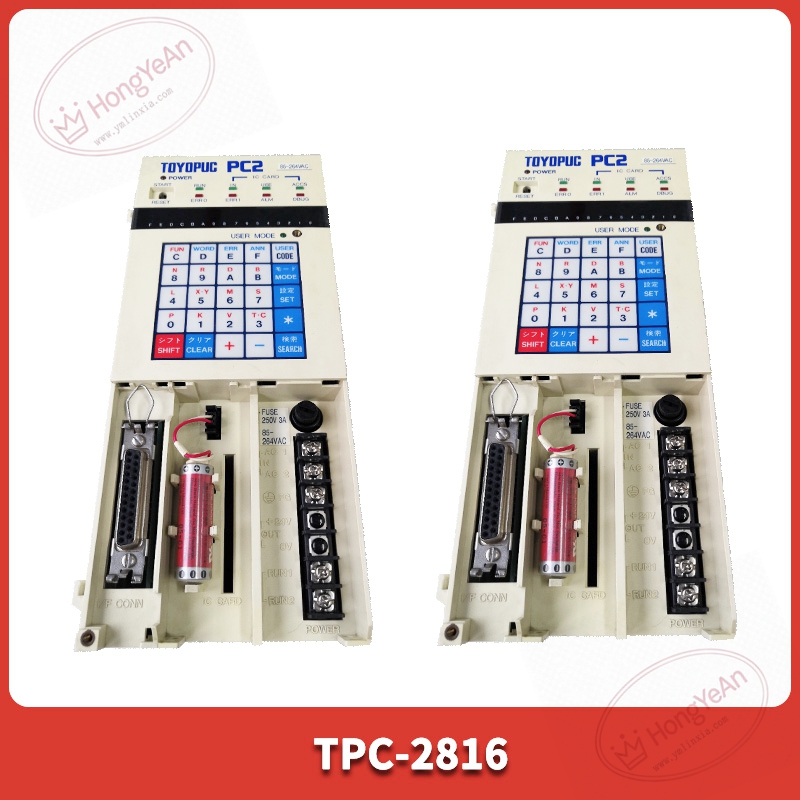

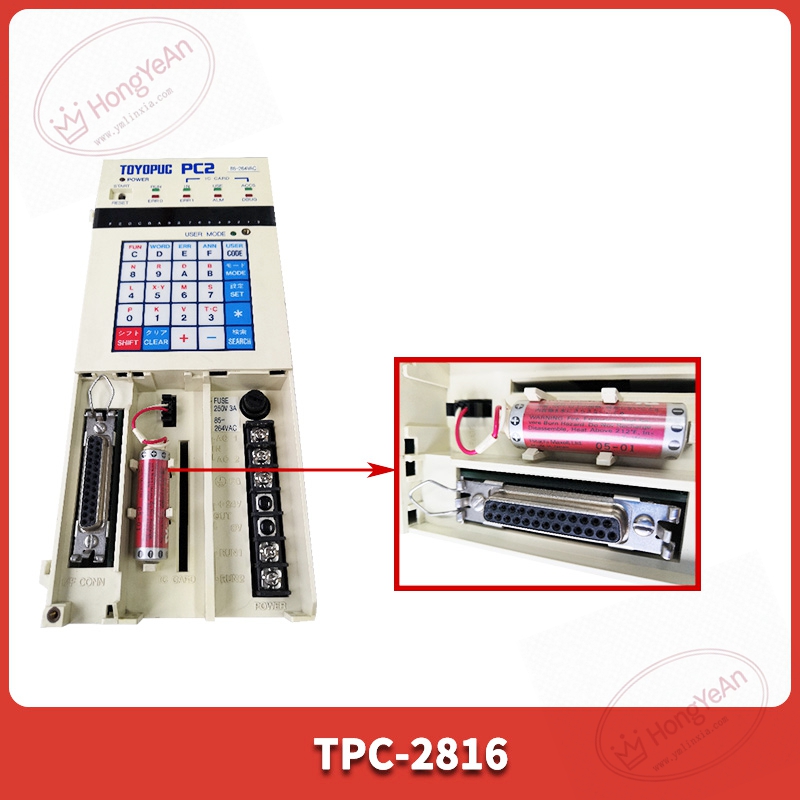

Cabinet‑mount controller main unit. Front side integrates membrane keypad, LED status indicator group. Internal slot for backup battery installation. Rear multi‑pin connectors are used for power supply, I/O expansion and communication wiring. Part‑number TPC‑2816 is printed on housing nameplate. PCB is conformal‑coated for dust‑resistance in factory cabinet surroundings。
Site application scenario
Widely used in legacy automobile manufacturing production lines, machine tools and general‑industry automation equipment. Responsible for equipment logic interlock, signal acquisition and upper‑monitoring data transmission. Controller hardware failure will stop equipment operation. After replacement, check battery status and all connector locking conditions, download project program, verify I/O status and communication links before commissioning.
Installation & maintenance notes
Cut off 24 VDC power before replacement. Take anti‑static measures during handling. Do not bend connector pins. Signal cables adopt shielded twisted‑pair, keep separated from high‑power cables to reduce electromagnetic interference. Pay attention to backup‑battery aging; replace battery regularly to prevent program loss. On‑site component‑level repair is prohibited. Replace complete unit when permanent hardware damage occurs.
Common site fault performances
- Controller cannot run, fault indicator lights: Check 24VDC input power, battery status and program integrity.
- Keypad display abnormal: Inspect keypad‑controller connection connector.
- Expansion I/O module cannot be recognized: Check expansion bus cable and connector contact condition.
- Intermittent program loss: Judge battery aging risk.
