Emerson 1C31166G02 Link Controller Electronic Module

Description

Technical highlights

Responsible for high‑speed Ovation highway bus data transmission, completes data interaction between local DPU and distributed remote I/O units. Supports hot‑swap operation without system shutdown. Module power is supplied through Ovation rack backplane. On‑board hardware self‑diagnosis function monitors link communication status and uploads fault alarm information to DCS operator station. Operating ambient: 0℃ ~ +60℃; storage‑40℃ ~ +85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount only. Compatibility note: Exclusively matches OCR1100 series controller base. After replacement, verify DCS hardware database configuration and firmware version consistency; mismatched variant will trigger link communication failure.

Physical features

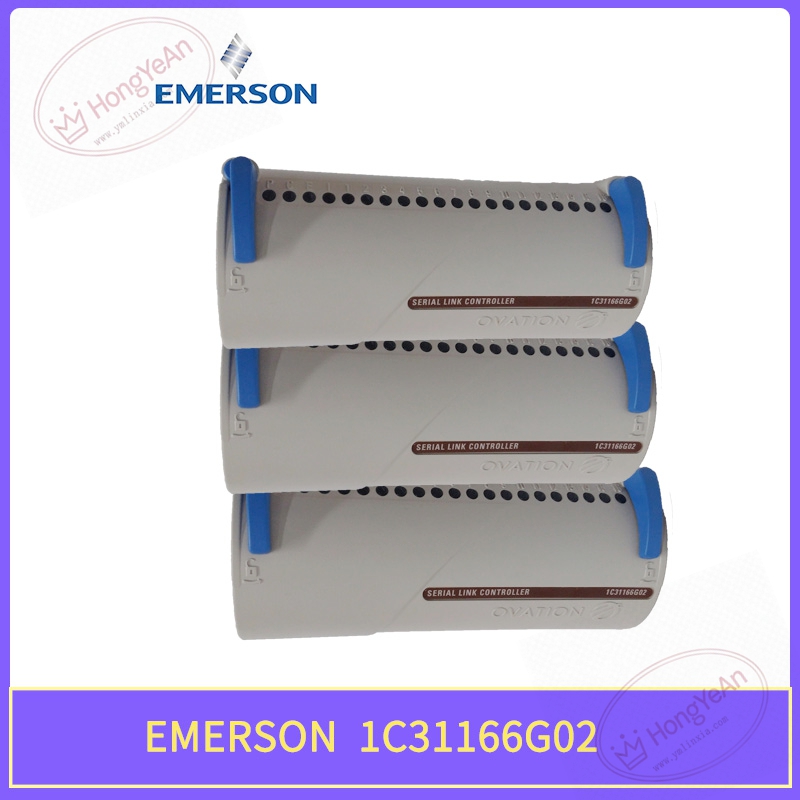

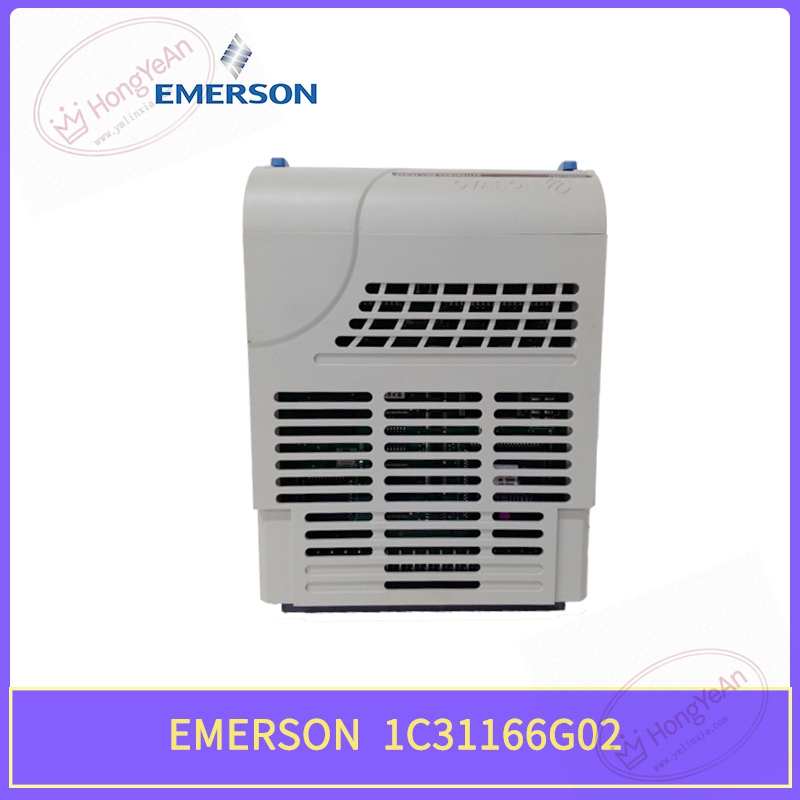

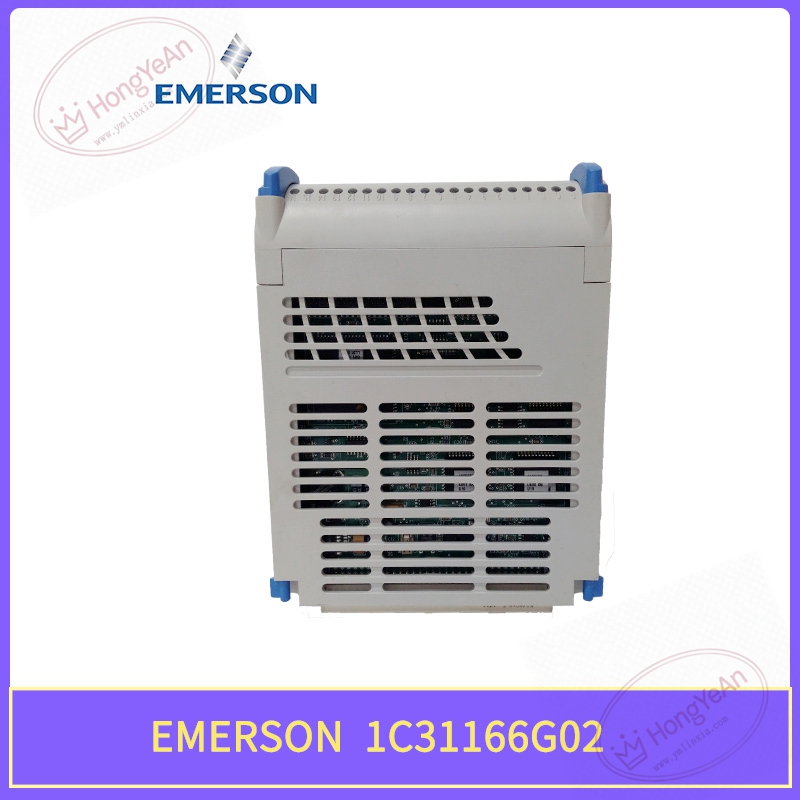

Standard Ovation rack‑slot plug‑in electronic module. Front panel is fitted with multi‑group LED indicators for run status, link activity and fault alarm. Rear high‑density connector docks with rack backplane for power supply and internal bus signal exchange. Part‑number 1C31166G02 is printed on module nameplate. PCB adopts conformal‑coated treatment for dust‑proof and anti‑corrosion performance in thermal‑power cabinet surroundings.

Site application scenario

Mainly installed inside thermal‑power Ovation DCS control cabinets. It serves as highway link communication gateway for OCR1100 DPU, realizing high‑speed data transmission between main controller and distributed remote I/O racks. Module failure will cause communication loss of related remote I/O drops, field measuring points and control loops become invalid. Under redundant DPU configuration, standby controller will take over automatically. After replacement, insert module into designated slot, check backplane connector locking condition, download system hardware configuration, verify highway link status and remote I/O point readings before commissioning.

Installation & maintenance notes

Take anti‑static protective measures during module handling. Avoid bending pins of rear backplane connector. High‑speed highway communication cables adopt dedicated shielded cables, keep separated from high‑power cables to restrain electromagnetic interference. Check connector terminals for dust and oxidation during routine overhaul; poor contact easily brings intermittent link breakdown. On‑site component‑level repair is prohibited. Replace complete electronic module when permanent hardware damage occurs.

Common site fault performances

1. Remote I/O drops offline: Check highway cable connection status, inspect module link‑fault LED state.
2. Module hardware diagnostic alarm: Confirm matching with OCR1100 base unit, verify firmware‑database consistency.
3. Intermittent communication jitter: Inspect cabinet temperature, dust accumulation and grounding condition.
4. Module cannot be identified by DPU: Re‑seat module, check backplane power quality.
