OVATION-1C31223G01 Relay Output Personality Base Module

Description

Technical highlights

Provides multi‑channel relay contact wiring terminals for field equipment. Supports dry‑contact output for interlock signals, alarm lights and auxiliary actuator control. Matches dedicated Ovation electronic module, signal transmission via rack internal I/O bus. Module power is supplied by Ovation rack backplane. Operating ambient: 0℃ ~ +60℃; storage‑40℃~+85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount only. Compatibility note: This is personality base hardware, cannot work independently. Must pair with matching electronic module. Mechanical structure and slot position shall conform to Ovation rack specification during replacement.

Physical features

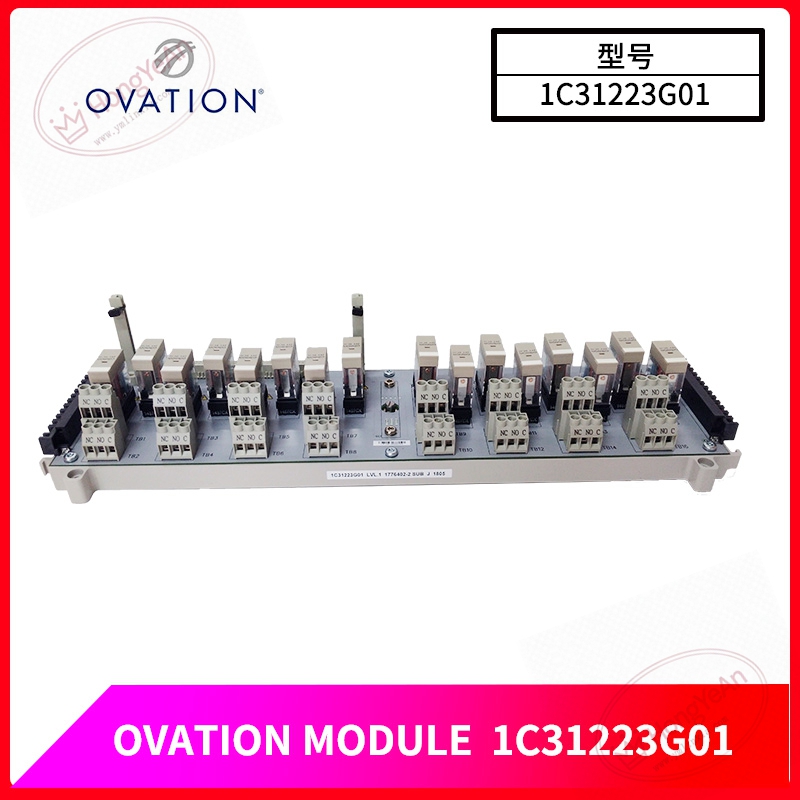

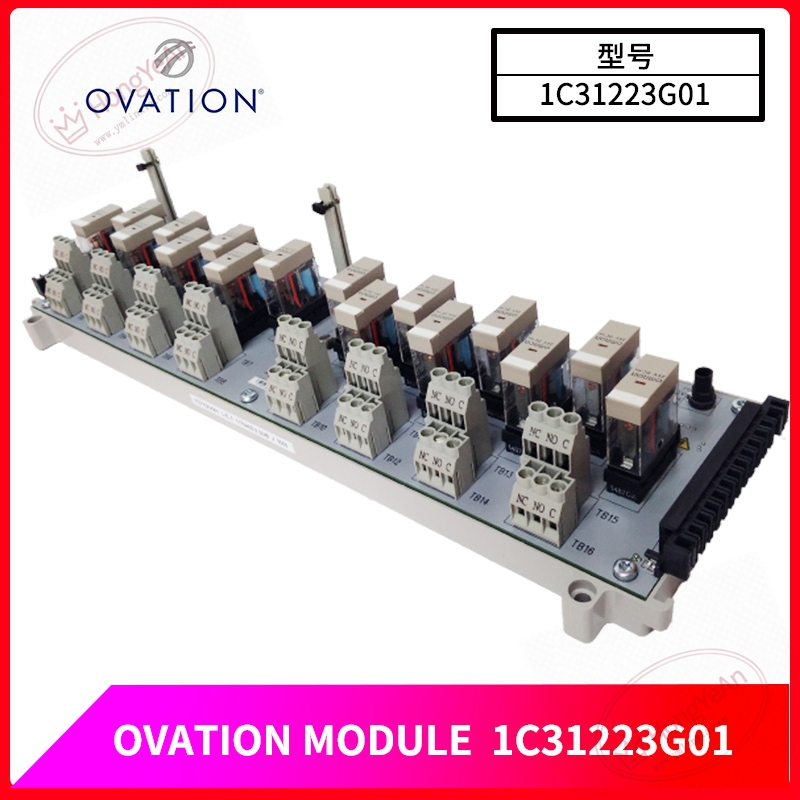

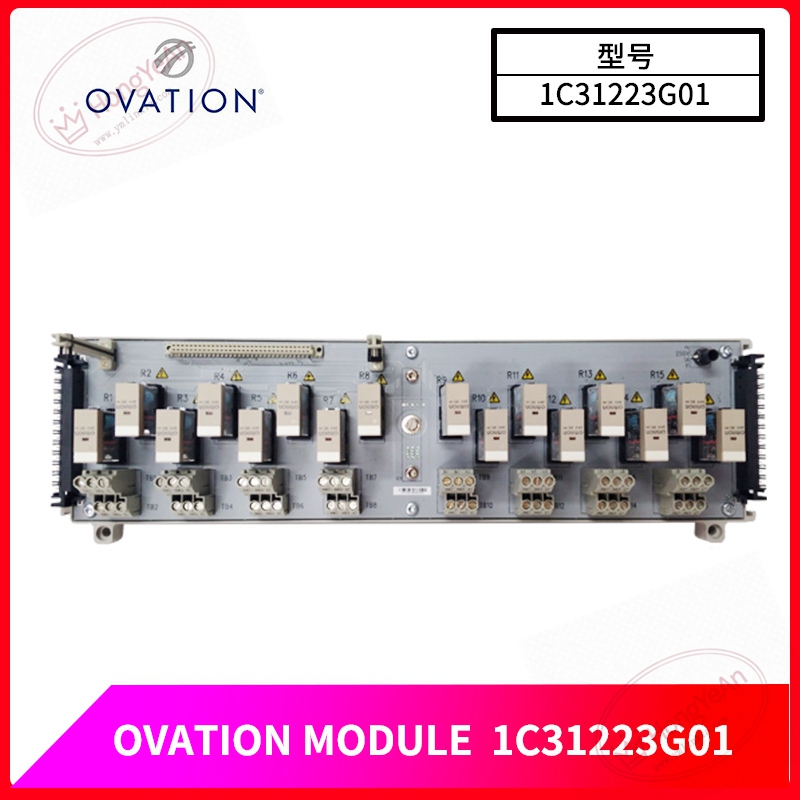

Rack‑mount personality base module. Front side is equipped with field wiring screw terminals and channel status indication positions. Rear connector is used for docking with electronic module and rack backplane bus. Part‑number 1C31223G01 is marked on module nameplate. PCB adopts conformal‑coated treatment for dust‑proof and anti‑corrosion in power‑plant cabinet environment.

Site application scenario

Mainly deployed in thermal power plant Ovation DCS cabinets. Receives switching commands from electronic module, outputs relay contact signals to drive on‑site alarms, solenoid valves and auxiliary interlock loops. Base module damage will cause abnormal signal transmission of related channels. After replacement, install together with matched electronic module, check terminal wiring tightness, verify each channel output action before commissioning.

Installation & maintenance notes

Cut off field side loop power before replacement. Anti‑static protection is required during handling. Do not bend rear connector pins. Field relay signal cables adopt shielded wires, keep separated from high‑power cables to reduce electromagnetic interference. Check terminal oxidation and looseness during routine maintenance, poor contact will trigger intermittent signal faults. On‑site component‑level repair is prohibited, replace complete base module when permanent hardware damage occurs.

Common site fault performances

1. Individual channel cannot output relay action: Check field load and terminal condition, inspect contact circuit of base module.
2. Partial channel signal unstable: Check terminal tightening status, eliminate external interference source.
3. Communication failure between base and electronic module: Inspect docking connector contact condition.

4. Multiple channels no response: Verify rack backplane power supply and hardware pairing correctness.
