Spectrum-MVI56-PDPMV1 PROFIBUS‑DPV1 Master Communication Module

Description

Technical highlights

Supports PROFIBUS‑DP V0 cyclic data exchange and DPV1 acyclic parameter access. Maximum 125 slave nodes, baud‑rate range 9.6 kbit/s‑12 Mbit/s. Backplane power draw: 800 mA @5VDC, 3 mA @24VDC. Equipped with D‑sub PROFIBUS‑DP interface and RS232 configuration debug port. Configuration is completed via Spectrum configuration tool. Data interaction with ControlLogix controller depends on backplane ladder logic. Operating ambient: 0℃ ~ +60℃; storage‑40℃ ~ +85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount only. Compatibility note: Fits standard 1756 rack slot. Although function‑compatible with ProSoft MVI56‑PDPMV1, original ProSoft configuration files cannot be directly imported; re‑configuration is mandatory. Controller firmware shall satisfy minimum version requirements.

Physical features

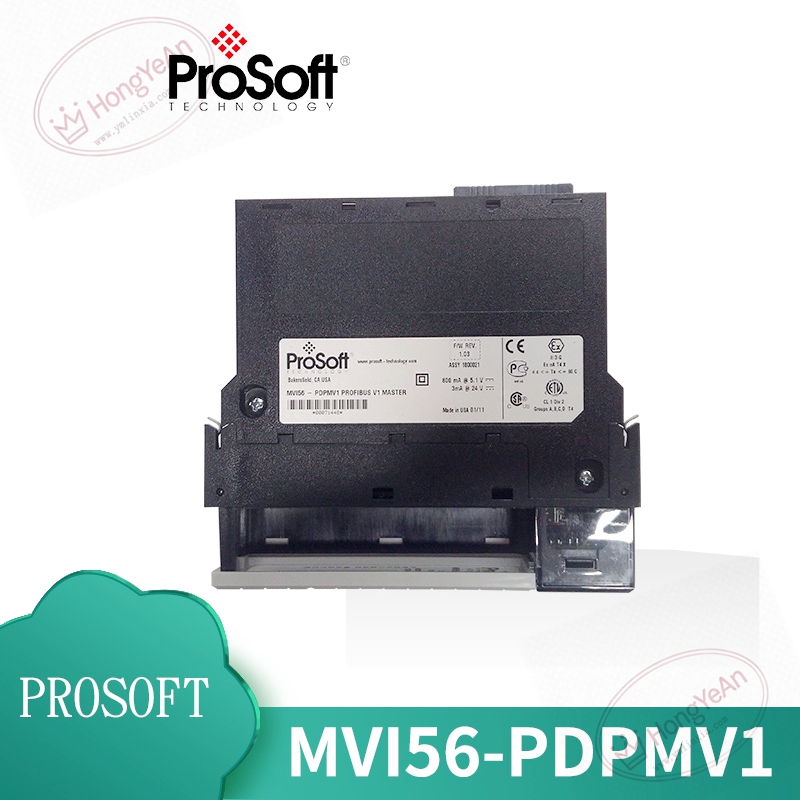

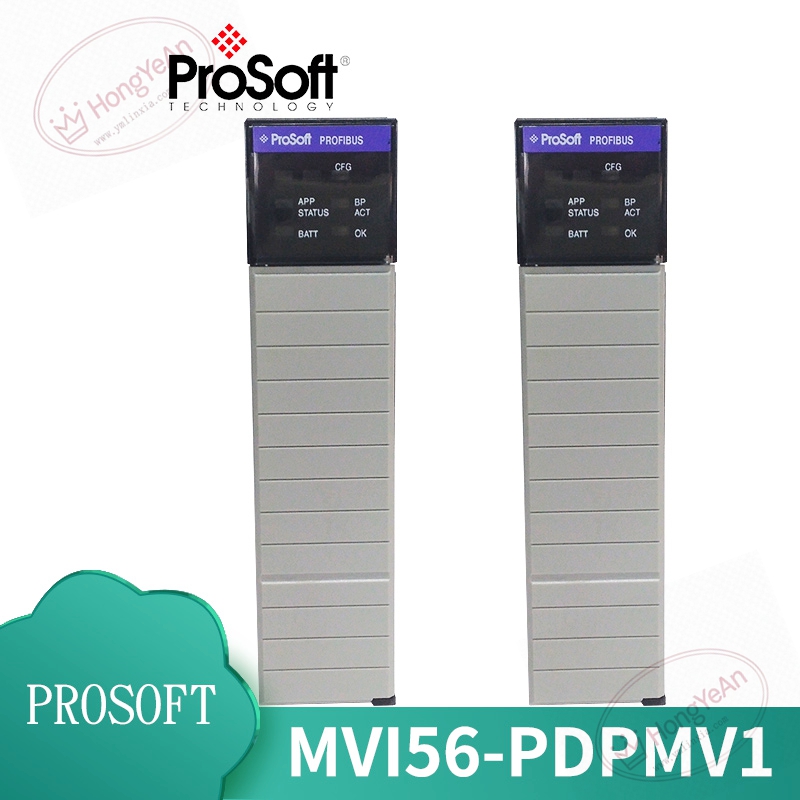

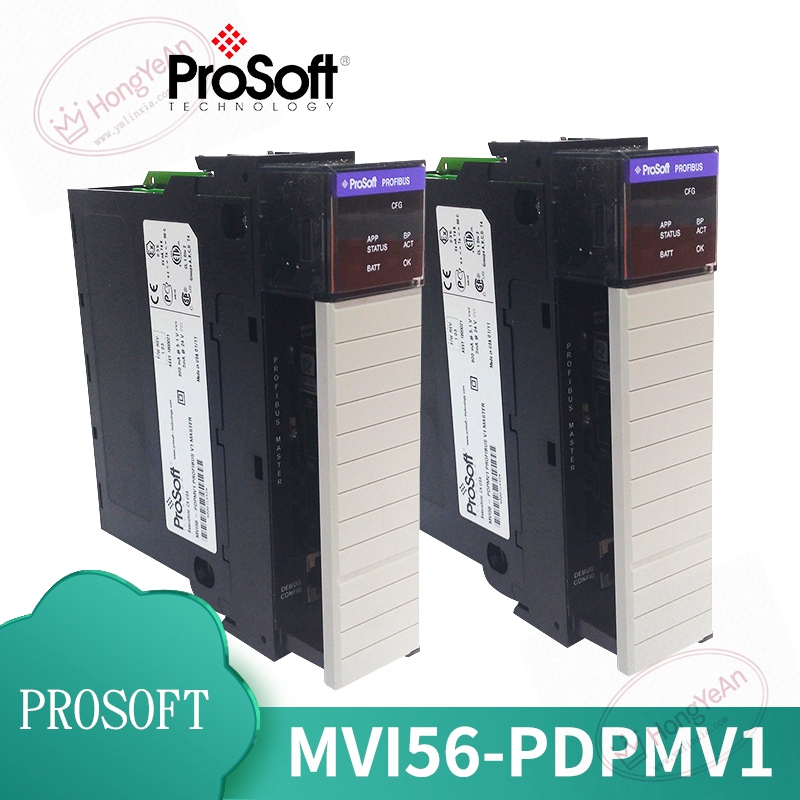

Standard 1756 single‑slot plug‑in module. Front panel integrates multi‑group LED status indicators for module health, backplane communication, application and bus fault. D‑Sub 9‑pin female connector for PROFIBUS‑DP field wiring. Rear gold‑plated connector docks to ControlLogix rack backplane for power and internal bus transmission. Part‑number MVI56‑PDPMV1 is printed on module nameplate. PCB adopts conformal‑coated treatment for dust‑proof performance in factory cabinet surroundings.

Site application scenario

Commonly deployed in manufacturing, chemical and power‑plant ControlLogix automation racks. Connects ControlLogix system to PROFIBUS‑DP slaves such as variable‑frequency drives, remote I/O modules and valve terminals. Module failure will cut off the whole PROFIBUS‑DP segment communication, all slave devices lose data interaction. After replacement, insert module into target rack slot, finish hardware recognition within ControlLogix project, complete dedicated configuration, set PROFIBUS baud‑rate and slave list, verify each slave online status before commissioning.

Installation & maintenance notes

Power off rack before module swap, anti‑static protection is mandatory during handling. Avoid scratching rear backplane connector pins. Use standard shielded PROFIBUS‑DP cable. Termination resistors shall be installed at both ends of bus segment. Keep fieldbus cables separated from high‑power cables to restrain electromagnetic interference. Backup ControlLogix ladder logic before hardware replacement. On‑site component‑level repair is prohibited; replace complete module under permanent hardware damage.

Common site fault performances

1. Partial or all PROFIBUS slaves offline: Check bus cable and termination resistor, verify baud‑rate setting and slave list configuration.
2. Module application fault LED illuminates: Re‑download valid configuration, check backplane contact quality.
3. Intermittent slave drop‑out: Inspect cable shielding grounding, cabinet temperature and dust accumulation.
4. Data cannot exchange between module and ControlLogix CPU: Check ladder logic program and backplane communication status.
