Description
Core technical features
4 analog output channels, signal range 0‑20 mA / 4‑20 mA, 12‑bit resolution. Each channel provides galvanic isolation. Built‑in HART modulation circuit allows bi‑directional parameter access for HART field instruments. Power is supplied via Ovation rack backplane. Supports configurable fail‑safe output hold‑last‑value or user‑defined fixed current value when communication breaks down. On‑board diagnostics detect open‑loop, short‑circuit and report fault information to operator workstation. Operating ambient: 0℃ ~ +60℃; storage‑40℃ ~ +85℃; humidity 5‑95% non‑condensing; IP20 cabinet‑mount installation. Compatibility note: Must pair with corresponding personality base unit. After replacement, confirm Ovation controller firmware version and download correct I/O point configuration. Wrong setup will lead to HART communication failure or abnormal analog output.
Physical construction

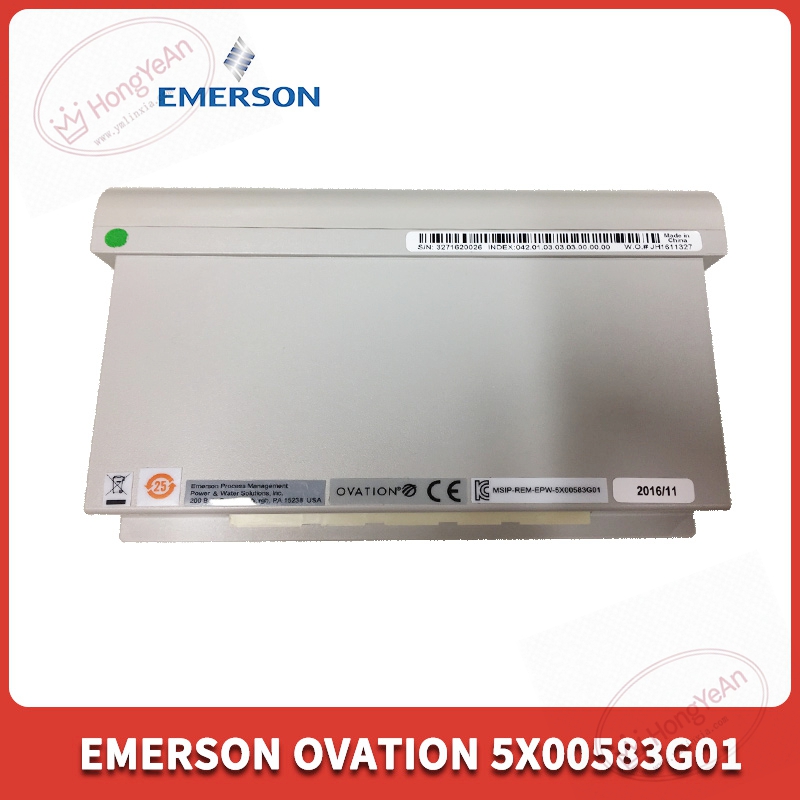

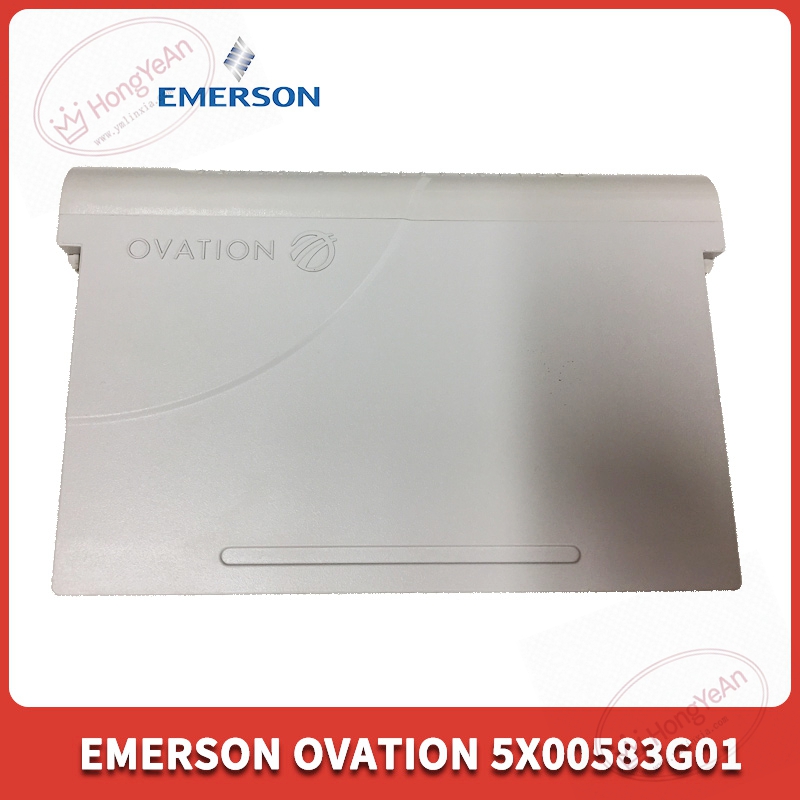

Standard Ovation single‑slot plug‑in electronic module. Front panel includes multi‑group LED indicators for module runtime status, backplane link and channel fault. Rear gold‑plated high‑density connector mates with rack backplane for power and high‑speed bus signal transmission. Field wiring is finished through matched personality base terminals. Part‑number 5X00583G01 is marked on module sticker label. PCB adopts conformal‑coated coating to resist dust and slight corrosive gas inside power‑plant control cabinets.
Site‑based practical notes
Commonly installed in thermal‑power plant Ovation DCS racks. It delivers analog set‑point signals for control valves, dampers and HART‑supported field actuators. Module damage will make all four analog output control loops invalid. Hot‑swap operation is supported under online system status. After installation, double‑check backplane connector locking status, download Ovation I/O configuration, verify each channel current output reading, complete HART instrument parameter read‑write test, clear fault log before commissioning.
Installation & maintenance reminders
Power off target rack before replacement. Strict ESD protection must be followed during handling. Do not bend or scratch rear backplane connector pins. Analog signal cables adopt shielded twisted‑pair wiring. Keep analog wires separated from high‑power cables to reduce electromagnetic interference. Save complete Ovation project backup before hardware swap. On‑site component‑level repair for internal circuit is forbidden; replace full module assembly when permanent hardware damage occurs.
Typical on‑site fault phenomena
- Individual channel output offset or no output: Check field loop load resistance and terminal block loosening condition.
- HART instrument cannot read‑write parameters: Confirm HART‑enabled configuration setting and field wiring integrity.
- Module channel fault alarm: Inspect field‑side short‑circuit or open‑circuit trigger condition.
- Intermittent output drift: Check cabinet temperature, dust accumulation and connector contact quality.
